110103 Top Drive Spare Parts Ibop 114706 Upper / Lower Kelly Valve With Repair Kit

Ask Lasest Price
Brand Name :
Model Number :	JH TESCO CANRIG VARCO TDS 11SA
Certification :	API
Price :	USD800-10000/pc
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	300 pieces per month
Delivery Time :	25-30 work days

Add to Cart

Product Details
Company Profile

110103 Top Drive Spare Parts Ibop 114706 Upper / Lower Kelly Valve With Repair Kit

Varco Top Drive Spare Parts IBOP 110103 & 114706, Upper/Lower Kelly Valve With Repair Kit In Stock

Description of Top Drive Spare Parts IBOP:

IBOP for top drive used for top drive system. It includes Upper IBOP for top drive and Lower IBOP for top drive. They are used for top drive drilling system with jointed one by one. It can stand the high pressure from upward and downward. The working pressure can reach 10,000psi or 15,000psi. The bore of the valve body and all internal parts are special treated to prevent from corrosion and they can have a long life service.

We produce H2S resistance IBOP for Top Drive, which adopt high quality import sulfur-resisitance material.

We are the professional top drive provider with business of repair,on-site operation&maintenance,lease and technical training.

We can supply spare parts for Varco,Canrig,Tesco,MH,BPM and so on.

Varco Top Drive Spare Parts

110103-502 ASSY,UPPER IBOP,6 5/8X 6 5/8,PH50,H2S, C/W CERT

110103-500 UPPER IBOP, PH50 ASSY, 6-5/8 X 6-5/8, C/W CERT

114859 REPAIR KIT,UPPER IBOP,PH-50 STD AND NAM

114706-500 ASSY,LWR IBOP,65/8X65/8W/REL GRV-STD, C/W CERT

114706-502 ASSY,LWR,IBOP6 5/8X6 5/8W/RLFGRV,H2SW, C/W CERT

114706-503 ASSY,LWR IBOP 65/8X65/8 NAM POCKET, C/W CERT

99498-2 REPAIR KIT,LOWER IBOP STD&NAM

117063-7500 GOOSENECK ASSY 7500PSI

30123289 WASH PIPE,3 BORE

16401-2 DIE,TONG

№	Name	Catalog Varco№
443	Сухарь	16401-2
444	Болт крепления плашки 127	50108-16-С
445	Сухарь	16401-2
446	Болт крепления плашки 89	50108-24-С
447	Сухарь	16401-2
448	Сухарь	16401-2
449	Рем комплект верхнего КШЦ	114859
450	Рем. Комплект уплотнений верхнего КШЦ	114859 1
451	Рем комплект нижнего КШЦ	99498-2
453	Болт крепления верхней воронки	50008-10-С5D
454	Фитинг, смазка	53219-2
455	Масленка	53209
456	Шестигранная гайка	50412-C
457	Шплинтовочная проволока	Z6001-CAN
465	Сухарь	16401-2
484	Экран подшипника	30154362
485	Втулка, верхнего штока,станд. отверст.	98290
486	Сальник	91250-1
487	Клапан предохранительный	141304
488	Кольцо стопорное	30123562
489	Винт стравливающий, в сборе	109528-6
490	Втулка	115176
491	Уплотнение поршня	72219
492	Уплотнение штока	72220
493	Кольцо маслосъемное	72221
497	PUMP HUD PISTON PRES COMP насос перем.	109542
500	Охладитель масла(Радиатор)	30122104
501	ПРОМЫВОЧНАЯ ТРУБА 3",TUNGSTEN-CARBIDE	30123289
502	CAP SCREW. SOCKET HD бол. на челюсти	50108-20-С
503	RETAINER DIE стопорная планка сухарей	124935
504	CAP SCREW. SOCKET HD бол. на челюсти	50108-18-С
505	Болт крепления нижней воронки	50012-16-С5D
506	WASHER LOCK SPLIT GR8 3/4 шайба крепления воронок	50912-С
508	FITTING GREASE EXTENDED 1/8-27 NPT OA LENGTH 11/16 SHANK 19/64 длинная тавотница	53219-1
510	Шплинтовочная проволока	Z6000.6-CAN
511	U-образный болт 350т.	119139
516	Кривошип КШЦ в сборе	98898
517	RING. THRUST нижняя направляющая штропоблока	30119357
518	BUSHING TURCITE направляющая штропоблока	119358
519	GLYD RING ROTARY 10.000 ROD уплотнения штропоблока	118375
520	RETAINER RING стопорное кольцо	30117775
525	Ремень инкодера	120117-3
526	LINK 1 CLLAPSIBLE колено на рычаг отклонен. штроп	30170445
528	КШЦ автоматический	110103-502
529	КШЦ механический	114706-502
532	U- shape bolt, tilt strap PH50	30122367

Product Show:

Varco 11SA Top drive wash pipe #30123289

Varco gooseneck pipe, part number 117063-7500

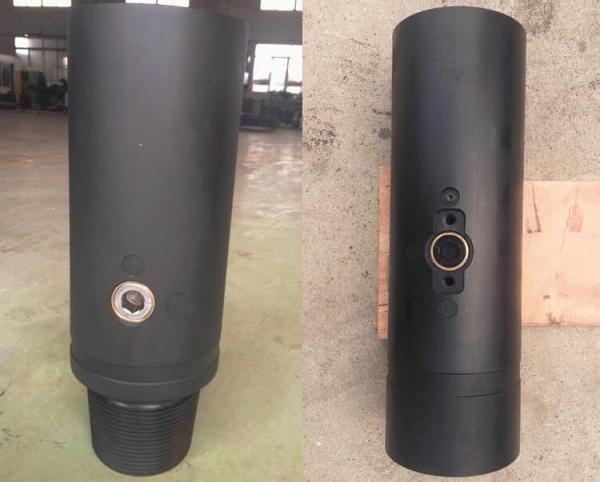

Lower IBOP, Catalog No. 114706-502

Pump, Catalog No. 109542

Pressure Switch, Catalog No. 76841

Tong Die, Catalog No.16401-2
