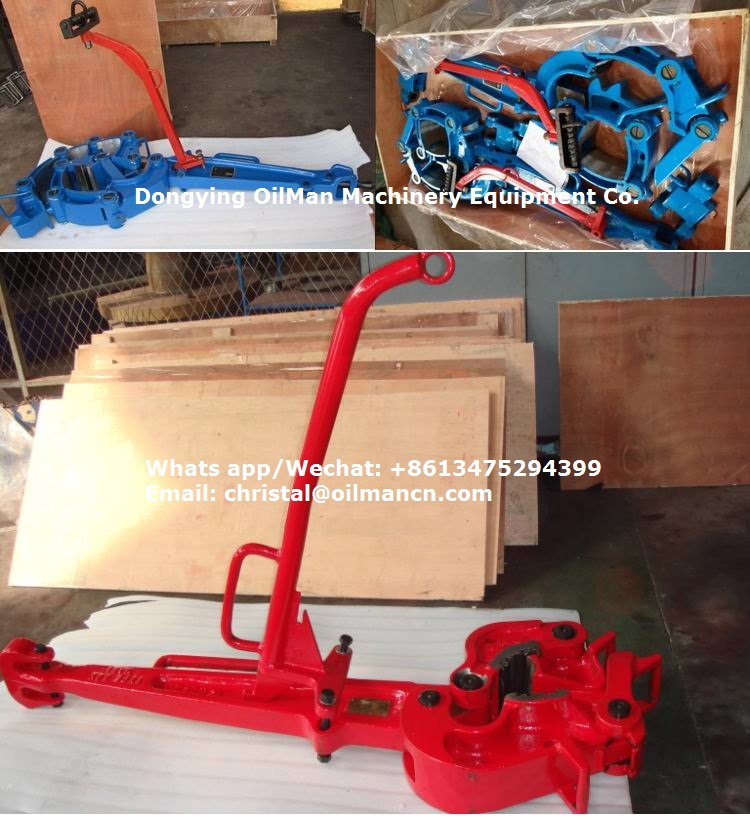

Type C Casing Manual Tong for Drill Pipe API 7K Specification

13 3 / 8 "--30 " / 35kN.M Type C Drill Pipe Manual Tong Casing Manual Tong

Description of Manual Tongs:

13 3 / 8 "--30 " / 35kN.M Type C Drill Pipe Manual Tong/Casing Manual Tong

Manual Tongs are necessary tolls applied to make up and break out pipes.Changing lug jaws and latch steps can adjust different handling sizes of the tongs.They are designed and manufactured according to API Spes 7K Specification for drilling and well servicing equipment.

2.Main Model:DB,B,LF&C etc

3.size: 2-3/8"----36"

4.Type DB,B,LF,SB,SDD,LF,C,WWC,WWB,AAX,workover Tongs,etc.

Pipe size		Torque Max. kN.m
mm	in	Torque Max. kN.m
340-368	13-3/8~14-1/2	35
368-406	14-1/2~16
406-445	16~17-1/2
445-483	17-1/2~19
483-508	19~20
508-546	20~21-1/2
546-584	21-1/2~23
610-648	24~25-1/2
648-686	25-1/2~27
686-724	27~28-1/2
724-762	28-1/2~30

Type C Manual Tongs
No. of Latch Lug Jaws	Short Jaw	Hinge Jaw	Handling O.D		Rated Torque
No. of Latch Lug Jaws	Short Jaw	Hinge Jaw	(mm)	(in)	KN•m
1#	2 3/8-7	-	60-93	2 3/8-3.668	48
2#			73-108	2 7/8-4 1/4
3#			89-133	3 1/2-5 1/4
4#			133-178	5 1/4-7
5#	7 3/8-10 3/4	7-8 5/8	178-219	7-8 5/8
6#	7 3/8-10 3/4	9 5/8-10 3/4	244-273	9 5/8-10 3/4

Type B manual tong

Latch Lug Jaw No.		Gripping Range		Torque max.
Latch Lug Jaw No.		in	mm	kN·m
5a	1	3 3/8—4 1/8	85.7~104.8	55
5a	2	4 1/8—5 1/4	104.8~133.4	55
5b	1	4 1/4—5 1/4	108~133.4	75
	2	5—5.3/4	127~146.1
	3	6—6 3/4	152.4~171.5
5b1	1	5 1/4—5 3/4	133.4~146.1
	2	6—6 5/8	152.4~168.3
	3	6 3/4—8	171.5~203.2
5c	1	6 5/8—7 3/8	168.3~187.3
	2	7 3/8—8	187.3~203.2	55
	3	8 1/2—8 5/8	215.9~219.1
5d	1	8 1/2—9 5/8	215.9~244.5
5d	2	10 5/8—10 3/4	269.9~273.1
5e	1	11 3/4	298.5
5e	2	12 3/4	323.9
5e3	1	13 3/8	339.7

We also can supply all petroleum handling tools including : B, SB, DB, SDD, LF, TC, Workover, WWC, WWB, AAX type manual tong, Q13 3/8-8 casing, Extended casing tong, manual tong, Elevator Type DD, Elevator Type DDZ, Elevators Type CDZ, Elevator Type TA. Elevators Type CD, Elevator Type SX, Elevators Type SLX. Y Series Slip Type Elevators elevator, slip, Spider, Bushing, manual tong, Elevator links products.

If any needs, pls contact us freely:

Dongying OilMan Machinery Equipment Co.

Address: North Two Road, Dongying City, Shandong Province, China.

Mob/whats app/we chat:+86 13475294399

*Email: christal@oilmancn.com Website: www.oilmanchina.com
