Oilfield Rubber Rig Mats wood composite foundation 3000 - 12000mm Length

Oilfield Strong Carrying Capacity Steel And Wood Composite Foundation Drilling Rig Mats

Product Introduction of Rig Mats:

Rig mats is a new type of steel and wood structure rig mats according to the needs of well site developed, the rig mats to replace the traditional concrete foundation, and greatly reduces the drilling cost , improve the economic efficiency, saves the land, and raise the level of the site management.

Product Application:

Rig mats (steel and wood composite foundation) is mainly used for the equipment foundation of various drilling wells such as base, mud pump, purification tank, power generation room, SRC room, oil tank and water tank to ensure the stability of drilling equipment for a long time. The steel-wood base is easy to install, quick and durable, and has a long service life.

Structure:

Composite Foundation frame of various specifications produced by our factory is mainly welded by H-shaped steel. It is embedded with high-quality larch or eucalyptus pine wood. It is treated with anti-corrosion treatment and clamped by M39 long stud. According to customer requirements, select the material.

Specifications and Dimensions of Rig Mats (Composite Foundation):

Model	Length	Width	Thickness	Weight
HGM301	3000mm	2000mm	160mm	720kg
HGM401	4000mm	2000mm	160mm	960kg
HGM501	5000mm	2000mm	160mm	1200kg
HGM601	6000mm	2000mm	160mm	1440kg
HGM1201	12000mm	2000mm	160mm	2880kg
HGM302	3000mm	2000mm	210mm	900kg
HGM402	4000mm	2000mm	210mm	1200kg
HGM502	5000mm	2000mm	210mm	1500kg
HGM602	6000mm	2000mm	210mm	1800kg
HGM1202	12000mm	2000mm	210mm	3600kg

Rig mats using range
Suitable for ZJ20, ZJ30, ZJ40, ZJ50, ZJ70 each drill in drilling depth in the plains of 1000-7000m, plateaux, deserts, hills, beach, different areas, such as swamp.

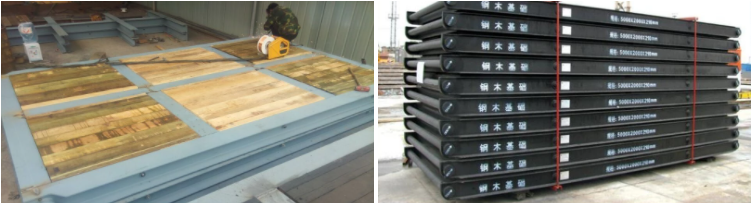

Products Show:

Company Information:

About us

Dongying Machinery Equipment Co.,Ltd is a professional supplier of various petroleum equipment, including drilling rig accessories, well control system, drill string, handling tools, downhole tools, OCTG, drilling tools, cementing tools and sapre parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.

Certificates

API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, ISO 9001, ISO14001, ISO18001 etc.
