API Mud Pump Spare Parts Valve Seat 20CrMnTiH For Drilling Rig

Ask Lasest Price
Brand Name :
Model Number :	F1600,F1300,F1000,F800,F500, GD PZ9/11, 12P160...
Certification :	API 7K
Price :	USD50-600/pc
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	1000 pieces per month
Delivery Time :	25-30 work days

Add to Cart

Product Details
Company Profile

API Mud Pump Spare Parts Valve Seat 20CrMnTiH For Drilling Rig

API Triplex Mud Pump Parts Valve Assembly And Valve Seat For Drilling Rig

Product Description:

specializes in supplying quality mud pumps and mud pump parts.

We export-orientated mud pump parts, including liners, pistons, piston inserts, valve inserts, oil seals, rod packing, fluid ends etc.. All of them meet or exceed DIN and API standards and have been exported to U.K., Germany, USA, Canada, Pakistan, Middle East, and so on.

We also supply mud pump parts according to drawings or samples supplied by our customers.

The valve and seat are made of forged alloy steel with deep carburized wear surface. We offer a full range of valves and seats which include full open valve and seat, 3 web / 4 web design valve and seat.

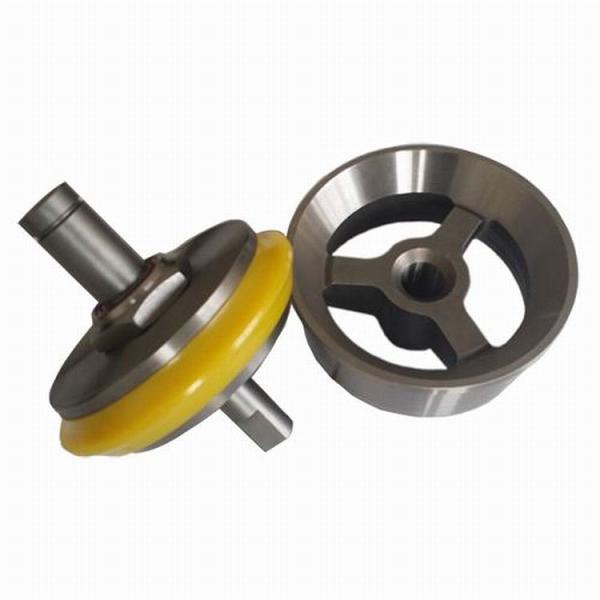

1) Stem-guided Valves& Cross-arms Seats

Stem-guided valve and cross-arms seat features an extra wide metal to metal seal on the valve flange. The serrated upper surface on the valve gives a longer non breathing seal between valve body and insert while the rigid seat cross-arms give greater strength and positive sealing.

2) Three-web,four-web valves and full open seats.

Three-wing guided valves and full open seats features greater fluid flow than four wing valves, the unibody forged valve features greater strength than traditional welded wing valve. Innovative unibody valve design eliminates snap rings, plates or keepers providing reduced maintenance by snap-on valve inserts and easy installation.

3) Double angle O-ring valve

The Double angle O-ring valve is made with a tough one-piece body to run more hours between change outs. It’s made with carburized premium alloy steel to resist wear, provide a positive seal, and help protect against wash out or damage to the pump.

They are available for these types as follow:

Model
BOMCO	F-500	F-800	F-1000	F-1300	F-1600	F-1600HL	F-1600L	F-2200HL
Hong Hua	HHF-500	HHF-800	HHF-1300	HHF-1600	3NB-1600F	5NB-1600	5NB-2400
EMSCO	F-500	F-800	F-1000	F-1300	F-1600	FD-1000	FC-2200	FB-1300
Gardner Denver	_PAH	_P7	_P8/9	_P10/11	_PXL	_PX-11	_PZL	_PY-FXD
National	7-P-50	8-P-80	9-P-100	10-P-130	12-P-160	14-P-200	14-P-220	N-1000/1300
Oilwell	A-850-PT	A-1100-PT	A-1400-PT	A-1700-PT
TSC	WF-500	WF-800	WF-1000	WF-1300	WF-1600	WF-2000	WF-2200
IDECO	T-500	T-800	T-1000	T-1300	T-1600

Products Overviews:

API Triplex Mud Pump Parts Valve Assembly And Valve Seat For Drilling Rig

Related Products:

We can provide much more mud pump spare parts, include liners, pistons, valves & seats, piston rods, rod clamps, extension rods, all fluid end seals and gaskets, fluid cylinder modules and accessories, as well as power end components, such as crankshaft assemblies, gear sets, connecting rods, crosshead and bearings.
