Annular Bop Well Control Equipment , Rubber Core Double Ram Bop

API 16A Annular BOP, Double Ram BOP, Single Ram BOP And Spare Parts

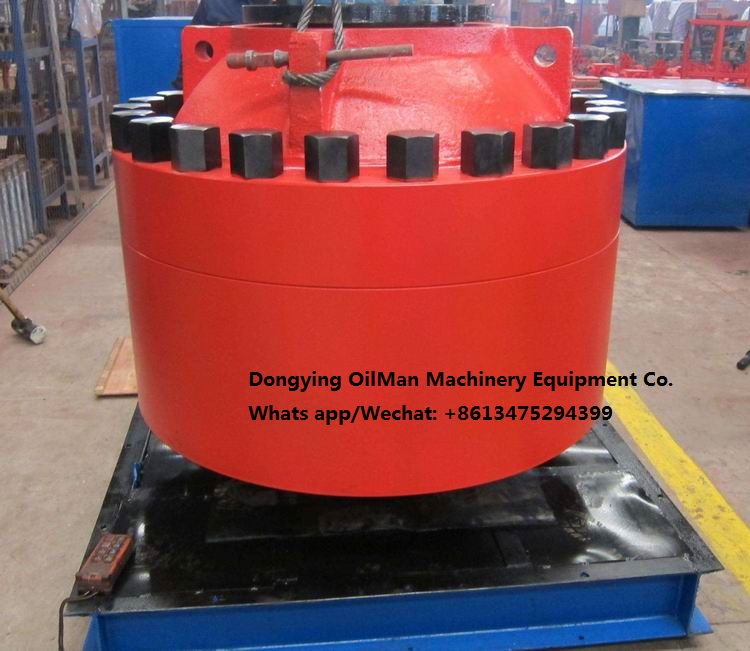

Description of Annular BOP:

API 16A annular BOP can be used in work over and drilling operations equipped with hydril control systems. The BOPs are designed and manufactured in full conformity to the API 16A standard. The annular BOP mainly consists of a body, a header, a rubber core, and a piston. The inner rubber core is interchangeable. While the annular BOP can be used independently, it normally works with a single or a double BOP.It can seal the drilling tool or well bore efficiently, preventing oil well blow outs. Its anti H2S performance conforms to the NACE MR 0175 standard.

Key feature:

1.Annular BOP can fully seal the wellhead when there is no string inside the wellbore.

2.Annular BOP can seal the annulus space of the wellhead when there is a string, wire line and cable inside the wellbore.

3.Snubbing can be performed if the butt welding drill pipe has an 18°beve.

4.Equipped with an energy accumulator, and a tubing coupling can pass through the annular BOP under pressure when well pressure is less than 3Mpa.

Annular Bop Well Control Equipment , Rubber Core Double Ram Bop

Technical Parameters

	Annular BOP for Workover		Annular BOP for Well Driling
Model	FH18-21	FH18-35	FH35-35	FH35-70
Nominal diameter(in)	7 1/16	7 3/8	13 5/8	13 5/8
Rated working pressure(psi)	3000	5000	5000	10000
Strength pressure test(psi)	6000	7500	7500	7500
Oil cylinder working pressure(psi)	1200-1500	1200~1500	1200-1500	1200~1500
Piston stroke(mm)	100	100	100	100
Metal temperature class(℃)	-29~121	-29~121	-29~121	-29~121
Nonmetal temp. class(℃)	-18~121	-18~121	-18~121	-18~121
Oil cylinder closed chamber volume(L)	17	17	17	17
Oil cylinder open chamber volume(L)	11.6	11.6	11.6	11.6
Bolt quantity and diameterc	12-M30 x 3 x 140	12-M36 x 3 x 180	12-M30 x 3 x 140	12-M36 x 3 x 180
Ring gasket	R45	R46	R45	R46
Dimension(mm)	737 x 740	737 x 770	737 x 740	1554x 1742
Weight(lb)	2628	2690	2628	12750
