Oilfield Solids Control Equipment , Diameter 2" 3" Mud Gun For Digging

Ask Lasest Price
Brand Name :
Model Number :	NJQ Series Mud Gun
Certification :	API
Price :	USD100-1500/set
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	200 sets per month
Delivery Time :	15-30 days

Add to Cart

Product Details
Company Profile

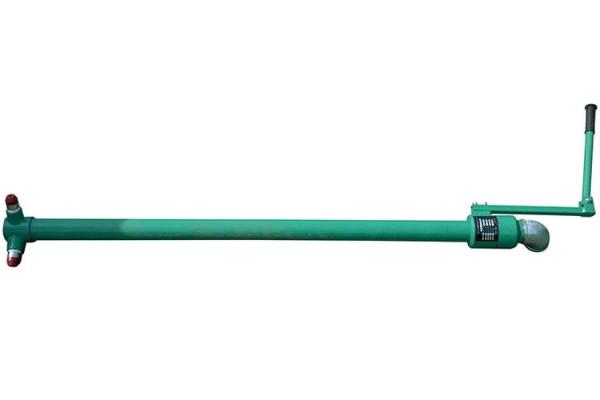

Oilfield Solids Control Equipment , Diameter 2" 3" Mud Gun For Digging

API Oilfield Drilling Fluid Solids Control Mud Tank System Mud Gun

Mud Gun Descriptions:

Mud Guns are designed for submerged service in mud pits and are popular in 2", 3". Besides, 4” is available against client request. They can be high pressure gun, or low pressure, high volume service such as in mud mixing system employing centrifugal pumps.

All mud guns are equipped with handles and swivel joints as illustrated, permitting 360° rotation. Length should, in all instances, be specified when ordering.

Mud guns are usually used along with agitator. That means, almost every compartment on tank will request a mud gun. And there are bottom type mud gun, pivot type mud gun, and non spin type mud gun. For mud gun nozzle, there are 1 or 3 as options.

Features of Mud Gun
1.High quality national standard steel.
2.Discharge nozzles can be polyurethane and tungsten carbide alloy material.
3.Flexible on configuration of size and pressure rates.
4.Simple design and easy to operate.
5.High quality painting job per international standard.

Technical Parameters of API Oilfield Solid Control Drilling Mud Gun

Model	NJQ-80-1	NJQ-80-6.4	NJQ-50-1	NJQ-50-6.4
Discharge capacity	60 m3/h	60 m3/h	50 m3/h	50 m3/h
Nominal diameter	80 mm	80 mm	50 mm	50 mm
Working pressure	≤1 MPa	≤6.4 MPa	≤1 MPa	≤6.4 MPa
Adjustable range	0~330°	0~330°	0~330°	0~330°
Length	According to the mud tank depth
Weight	65kg	90kg	55kg	85kg

Complete soilds control system we supply:

A complete solid control system,including Shale Shaker, Mud Cleaner ,Desander ,Desilter, Centrifuge, Cutting Dryer ,Agitator, Mixing Hopper, Flare Igniter, Various Tanks, Pumps, Degassers etc .
