590Kg Electronic Flare Ignition System DN200mm With Stainless Steel Burner Torch

Electric Igniter/Flare Ignition Device/Drilling Gas Electronic Ignition System For Solid Control Equipment

Flare Ignition Device Descriptions:

Flare ignition device is a special oil drilling equipment to handle the invaded gas, it is also an effective equipment to handle the tail gas and invaded natural gas in refinery and natural gas collecting and distributing station.

It can ignite the harmful invaded gas to eliminate the hazards to the environment, also it is a security environmental protection equipment.

This equipment can match with mud gas separator, and is usually used in oil & gas drilling and CBM drilling. The flare ignition device is classified by two kinds: wired remote control and wireless remote control.

Flare Ignition Device Feature:

1.Stainless steel burner torch

2.Mature design with successful job site performance

3.Conventional battery or solar battery

4.Custom built available

Technical Parameters of Flare Ignition Device:

Electrical Equipment Protection Device Technical Parameters
Fuel Tank	40L	Burner(Torch) Path:	DN200MM
Burner Height:	About 2m	Burner Height:	3m
Pressure Regulator Valve Set Outlet Pressure	≥0.5 Mpa	Electronic Ignitor Power:	DC
Remote Control Distance	30m	Electronic Ignitor Voltage:	16kW
Ignition Medium	Diesel	Electronic Ignitor Frequency:	100-1000beats/Min
Charging Voltage	~220V,50HZ
Ambient Temperature:	－30℃～40℃
Ignition Frequency	≤10 Times/Second

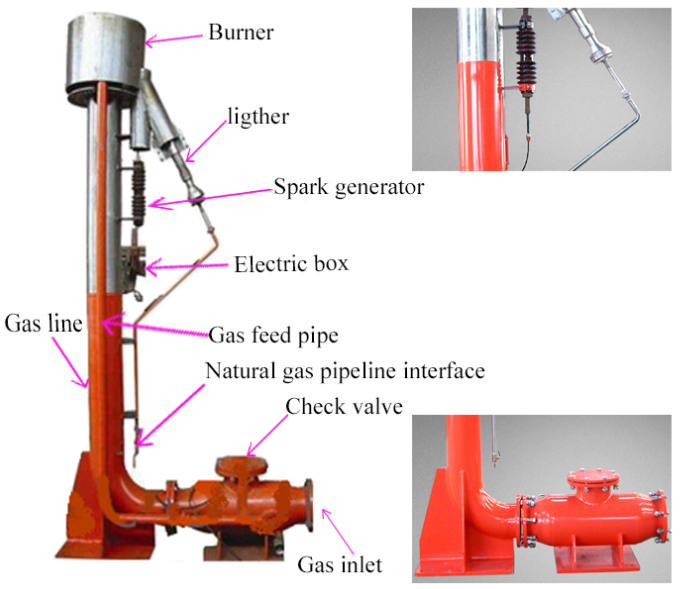

Main Configuration
Combustion Cylinder	1	Fire Torch	1
Ignition Rod	1	Fire Tube	1
Control Box	1Set	Windshield	1
Fuel Injection Gun	1	Electrical Control Box	1
Oil Pipeline	1	Ignition Device Body	1(Including Torch,High-Energy Package)
Gas Pipeline	1	Ignition Control Box	1(There is a remote control,electronic control box key)
High Voltage Cable	30m	Cable Tray	1
Gas Hose	30m	Liquefied Gas Connection Pipeline	1(with 2 tube clip)
Remote Control	1	Pressure Reducing Valve	1

Complete soilds control system we supply:

A complete solid control system,including Shale Shaker, Mud Cleaner ,Desander ,Desilter, Centrifuge, Cutting Dryer ,Agitator, Mixing Hopper, Flare Igniter, Various Tanks, Pumps, Degassers etc .
