IADC537G Tricone Rock Hard Drill Bits Sealed Bearing 17-1/2"

Ask Lasest Price
Brand Name :
Model Number :	IADC517,537,617,637,etc
Certification :	API & ISO
Price :	USD500-3000/spc
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	800 pcs per month
Delivery Time :	7-30 days

Add to Cart

Product Details
Company Profile

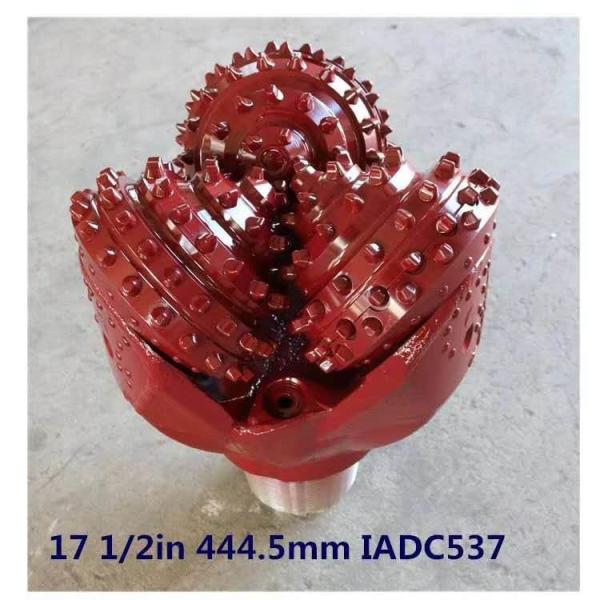

IADC537G Tricone Rock Hard Drill Bits Sealed Bearing 17-1/2"

Sealed Bearing 17-1/2" IADC537G Tricone Bit For Hard Rock Drilling With Factory Price

Description of Tricone Bits:

The tricone drill bit is the most popular drilling bit in the world,it can be widely used for Oil&Gas Drilling,Mining,Water Well,Geological Exploration areas.Our tricone bit divideds into metal sealed drill bit and rubber sealed bit.

Advantage :

1. High temperature heat treatment forged alloy steel .

2. Carbide teeth with high strength and toughness work more efficiently

3. Tooth palm lip hard welding surface with hard alloy ,Effectively prevent the drill bit wear and tear work

4. Head OD protection to effectively reduce head wear in abrasive formation and extend bit work

5.Directional jet enlarges lateral flow area and helpful bottom hole cleaning and increase of ROP

6. Lubricating system protection of bearing and seal system of bit extend bit work life

7. API REG Connection

Regular Models of Tricone Bits
Regular Sizes	Regular IADC	API Reg Pin	Make-up Torque(N.m)
3 7/8"(98.4mm)	126/216/517/537/637	2 3/8	4100~4700
4 5/8"(117.4mm)	126/216/517/537/637	2 7/8	6100~7500
5 1/2"(139.7mm)	126/216/517/537/617/637	3 1/2	9500~12200
5 5/8"(142.8mm)	126/216/517/537/617/637	3 1/2	9500~12200
5 7/8"(149.2mm)	126/216/517/537/617/637	3 1/2	9500~12200
6"(152.4mm)	126/127/216/517/537/617/637	3 1/2	9500~12200
6 1/4"(158.7mm)	126/127/216/517/537/617/637	3 1/2	9500~12200
6 1/2"(165mm)	126/127/216/517/537/617/637	3 1/2	9500~12200
7 1/2"(190mm)	126/216/517/537/637	4 1/2	16300~21700
7 5/8"(193mm)	126/216/517/537/637	4 1/2	16300~21700
7 7/8"(200mm)	126/216/517/537/637	4 1/2	16300~21700
8 1/2"(215.9mm)	117/127/217/437/517/537/617/637	4 1/2	16300~21700
9 1/2"(241.3mm)	117/127/217/437/517/537/617/637	6 5/8	38000~43400
9 7/8"(250.8mm)	117/127/217/437/517/537/617/637	6 5/8	38000~43400
10 5/8(269.8mm)	117/127/137/217/517/537/617/637	6 5/8	38000~43400
11 5/8(295.3mm)	117/127/137/217/517/537/617/637	6 5/8	38000~43400
12 1/4"(311.1mm)	114/127/217/437/517/537/617/637	6 5/8	38000~43400
13 5/8"(346.0mm)	127/217/517/537/617/637/737/837	6 5/8	38000~43400
14 3/4"(374.6mm)	127/217/517/537/617/637/737/837	7 5/8	46100~54200
17 1/2"(444.5mm)	114/115/125/215/515/535/537/615/635	7 5/8	46100~54200
20''(508.0mm)	114/115/125/215/515/535/537/615	7 5/8	46100~54200
22''(558.8mm)	114/115/125/215/515/535/537/615	7 5/8	46100~54200
24''(609.6mm)	114/115/125/215/515/535/537/615	7 5/8	46100~54200
26"(660.4mm)	114/115/125/215/515/535/537/615	7 5/8	46100~54200

IADC	Rock formation	WOB (KN/mm)	PRM(r/min)
415/425/435	Low compressive strength, high drill-ability and extremely soft formation, like shale, clay, sandstone, conglomerate etc	0.35~0.90	140~70
447	Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, plaster etc.	0.35~1.00	140~60
517	Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, etc	0.35~1.05	120~50
527	Soft formation with low compressive, like Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, anhydrite etc.	0.35~1.05	120~50
537/547	Low compressive strength, medium hard formation with hard abrasive interlayer, like hard shale, anhydrite, soft limestone, sandstone, dolomite with mezzanine, etc.	0.50~1.05	110~40
617/627	High compressive strength, medium hard and thick hard interlayer, like hard shale, limestone, sandstone, dolomite, etc.	0.50~1.05	80~40
637/647	High compressive strength, medium hard and high abrasive formation, like limestone, dolomite, sandstone, chert, etc.	0.7~1.20	70~40

Our Advantages:

Related Products:

Packing & Shipment:
