API Standard Water Swivel For Drilling Rig/Oil Well Drilling Power Swivel For Oilfield

API Standard Water Swivel For Drilling Rig/Oil Well Drilling Power Swivel For Oilfield

Product Introduction:

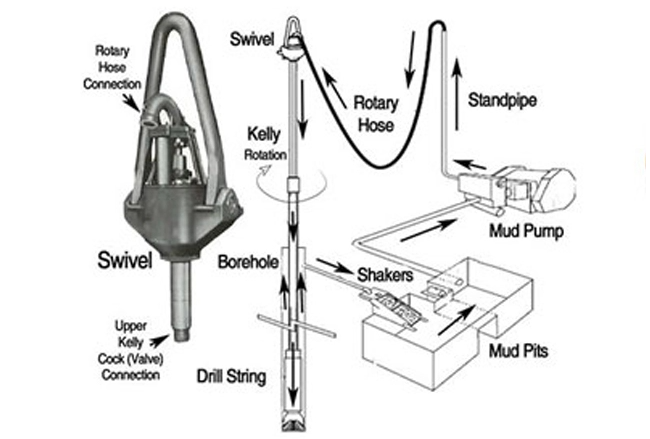

Water Swivel for drilling: The swivel includes two main categories, which are common swivel and double duty swivel. Double duty swivel is a common swivel combined with a spinner. Common swivel consists of swivel bail, shell, support, gooseneck, central pipe, master bearing, joint and other parts. The lower end is connected with kelly stem by REG thread. The swivel bail is hung on the hook. Gooseneck and rotary hose can be connected by REG thread connection or union connection.

Washpipe packing set assembly adopts cassette structure, so it can be quickly replaced without disassembling rotary hose and gooseneck. 3LP and 4LP internal or external thread hose connection thread are available for you. Our swivel meets API SPEC 8C PSL1 standards. We can also manufacture low temperature resistant swivel according to customer's requirements.

Drilling Swivel
Main Features: 1.Built on API 8A, with the certificate of authority to use the official API monogram. 2.Double pin (male) alloy sub is optional. 3.The washpipe and packing are box structure, convenient for replacement. 4.Equipped with rotary hose joint (4 API LP).
The technology parameter
Model No	The max.Static Load	The max. speed	Centrel pipe dia	Joint hread		The max.working pressure	Size (Length ×Width×Height)	Weight
Model No	The max.Static Load	The max. speed	Centrel pipe dia	Joint Centrel pipe	Joint the square rod	The max.working pressure	Size (Length ×Width×Height)	Weight
SL90	900 kN	300 r/mm	60mm	4-1/2 FH-LH	6-5/8 REG-LH	27.5 MPa	1898 mm×628 mm×722 mm	1106kg
SL120	1200 kN	300 r/mm	54mm	4-1/2 LH	3-1/2 REG-LH	35 MPa	1898 mm×628 mm×722 mm	1289kg
SL135	1350 kN	300 r/mm	64mm	4 1/2 REG LH	6 5/8 REG LH	35 MPa	2520 mm×758 mm×840 mm	1341 kg
SL160	1600 kN	300 r/mm	64mm	4 1/2 REG LH	6 5/8REG LH	35 MPa	2175 mm×781 mm×660 mm	1689kg
SL170	1700 kN	300 r/mm	64mm	4 1/2 REG LH	6 5/8 REG LH	35 MPa	2786 mm×706 mm×791 mm	1834 kg
SL225	2250 kN	300 r/mm	75mm	6 5/8 REG LH	6 5/8 REG LH	35 MPa	2880 mm×1026 mm×820 mm	2246 kg
SL315	3150 kN	300 r/mm	75mm	6 5/8 REG LH	6 5/8 REG LH	35 MPa	2418mm×1056mm×1041 mm	3000kg
SL450	4500 kN	300 r/mm	75mm	7 5/8 REG LH	6 5/8 REG LH	35 MPa	3015 mm×1096 mm×960 mm	2700 kg
SL585	5850 kN	300 r/mm	75mm	7 5/8 REG LH	6 5/8 REG LH	35 MPa	3115 mm×1143 mm×990 mm	4000 kg

Swivel with spinner
XSL Swivel with spinner is a combination of swivel and kelly spinner ,driven by air motor or hydraulic motor,with keyless connection adopted between spinner and central pipe of swivel.It is designed and manufactured according to API Spec 8A Specification for drilling and production hoisting equipment.
The technology parameter
Model No	XSL135 XSL135Y		XSL170 XSL170Y		XSL225 XSL225Y		XSL315 XSL315Y		XSL450 XSL450Y
The max.Static Load	1350 kN 150 US ton		1700 kN 200 US ton		2250 kN 250 US ton		3150 kN 350 US ton		4500 kN 500 US ton
Dynamic load rating	1000 kN		1300 kN		1600kN		2100kN		3200kN
	110 US ton		140 US ton		175 US ton		230 US ton		350 US ton
The max. speed	300 rpm		300 rpm		300 rpm		300 rpm		300 rpm
The max. working pressure	35 MPa		35 MPa		35 MPa		35 MPa		35 MPa
	5000 psi		5000 psi		5000 psi		5000 psi		5000 psi
Centrel pipe dia.	64 mm		64 mm		75 mm		75 mm		75 mm
	2.52 in		2.52 in		3 in		3 in		3 in
Goosenek connection	4 LP		4 LP		4 LP		4 LP		4 LP
Sub connection	65/8REG -LH		65/8REG -LH		65/8REG -LH		65/8REG -LH		65/8REG -LH
Size (Length ×Width×Height)	2326 mm×660 mm×780 mm		2480 mm×820 mm×822 mm		2743 mm×1010 mm×957 mm		2873 mm×1056 mm×1041 mm		3025 mm×1096 mm×1012 mm
	91.6 in×26 in×30.7 in		97.6 in×32.3 in×32.4 in		108 in×39.8 in×37.7 in		113.1 in×41.6 in×41 in		119.1 in×43.1 in×39.9 in
Weight	1850kg	1912kg	2050kg	2114kg	3000kg	3078kg	3400kg	3478kg	3800kg	3878kg
	4078 lb	4215 lb	4519 lb	4661 lb	6614 lb	6786 lb	7496 lb	7668 lb	8377 lb	8550 lb

If any needs, pls contact us freely:

Dongying OilMan Machinery Equipment Co.

Address: North Two Road, Dongying City, Shandong Province, China.

Mob/whats app/we chat:+86 13475294399

*Email: christal@oilmancn.com
