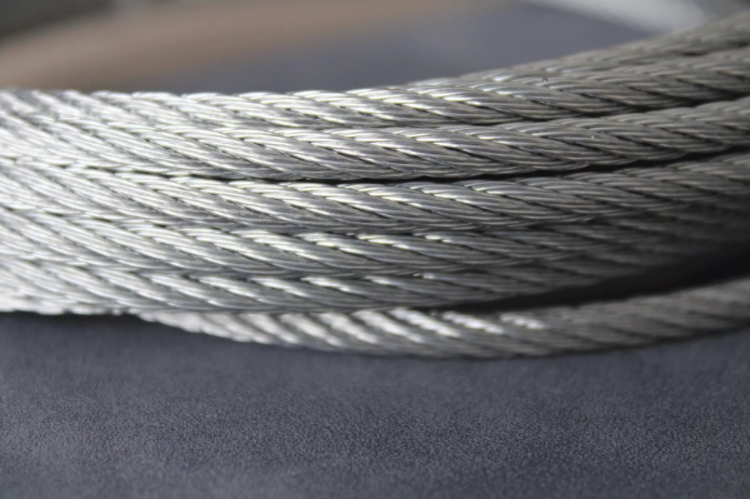

Steel Heavy Duty Wire Rope 5-50mm Wire Gauge API 9A Standard For Offshore

API 9A Standard Heavy Duty Steel Wire Rope For Offshore,Mining,Crane,Cableways

Description of API 9A Drilling Line/Steel Wire Rope:

Petroleum Drill Lines are produced and tested in accordance with latest edition of API SPEC 9A" Specification for Wire Rope" . The wire rope is linear contacted and have high strength.

Main Applications: Various equipment for hoisting, ing, lifting, towing, port load and unload, blast furnace hoisting and oil well drilling. The rope with wire core can be used under the shock load, heated and squeezed conditions.

It is widely used in oil field of both land and ocean such as drilling lines, rod and tubing pull lines, horses head pumping unit lines, winch lines, and so on.

Rope type:6×19(a)

Rope Size: 12-42mm

Common Steel Wire Rope Construction

1×7,1×19, 6×7+FC, 7×7, 6×12+7FC, 6×15+7FC, 6×24+7FC
6×19+FC,6×19+IWRC, 6×19+IWS(7×19), 6×37+FC, 6×37+IWRC
6×19S+FC, 6×19S+IWRC, 6×19W+FC 6×19W+IWRC,
6×25Fi+FC, 6×25Fi+IWRC, 6×26SW+FC, 6×26SW+IWRC
6×29Fi+FC, 6×29Fi+IWRC, 6×31SW+FC, 6×31SW+IWRC,
6×36SW+FC 6×36SW+IWRC, 6×61+FC
18×7+FC, 19×7, 18×19+FC, 34×7+FC, 35W×7
8×19+FC, 8×19S+FC,8×19S+IWR and so on.

Technical Data of Our Oilfield Wire Rope

Type	Diam.		Met. area	Met.	Outer Wire	IPS	EIPS
Type	in.	mm.	mm2	kg/m	mm	kN	kN
18x7+FC	1/2 ~1 1/2	13.0~38.0	81~694	0.64~5.79	0.86~2.50	88~751	96~826
19x7	1/2 ~1 1/2	13.0~38.0	86~733	0.67~6.07	0.86~2.50	88~751	96~826
6x27H+IWRC	1~1 7/8	26~48	303~1031	2.81~9.90	1.86~3.43	439~1490	484~1640
6x30G+IWRC	1~2	26~52	303~1210	2.81~11.20	1.86~3.71	439~1680	484~1840
8x19S+FC	1/2~1 1/8	13.0~29.0	82~410	0.70~3.56	0.86~1.92	90~443	104~507
6x36SW+FC	3/4~2	19~52	146~1095	1.41~10.00	1.06~2.90	212~1420	233~1560
6x36SW+IWRC	3/4~2 3/8	19~60	172~1711	1.55~15.50	1.06~3.35	228~2130	262~1970
6x29Fi+FC	3/4~2	19~52	148~1111	1.41~10.00	1.06~2.90	212~1420	233~1560
6x29Fi+IWRC	3/4~2 1/8	19~54	173~1396	1.55~12.40	1.06~3.01	228~1710	262~1970
6x31SW+FC	3/4~2	19~52	146~1093	1.41~10.00	1.21~3.30	212~1420	233~1560
6x31SW+IWRC	5/8~1 7/8	16~48	119~1072	1.07~9.67	1.17~3.51	159~1350	183~1360
6x26SW+FC	3/4~1 7/8	19~48	142~909	1.41~8.80	1.39~3.51	212~1250	233~1220
6x26SW+IWRC	5/8~1 7/8	16~48	119~1072	1.07~9.67	1.17~3.51	159~1350	183~1360
6x25Fi+FC	7/8~2	22.0~48.0	198~1291	2.11~11.00	1.40~3.30	308~1630	354~1550
6x21S+FC	1/2~2	13~52.0	68~1091	0.63~10.00	0.96~3.85	95~1420	105~1050
6x19S+FC	1/2~1 3/4	13.0~45.0	68.7~823.0	0.63~7.66	1.03~3.58	95~1100	105~898
6x19S+IWRC	1/2~1 3/4	13.0~45.0	80.7~967.5	0.68~8.44	1.03~3.58	102~1180	118~1010
6x7+FC	3/8~7/8	9.50~22.00	33.1~177.6	0.31~1.71	1.00~2.35	52.1~273.0	-
5x7+FC	3/16~5/16	4.76~7.94	8.3~23.1	8.01~22.17	0.57~0.95	13.8~37.8	-
5x5+FC	5/32~5/16	3.97~7.94	5.8~23.1	5.15~20.54	0.60~1.19	8.9~34.7	-

Products Show:

API 9A Standard Heavy Duty Steel Wire Rope For Offshore,Mining,Crane,Cableways

Factory Workshop:

FAQ:

How can I place order?

A: You can contact us by email about your order details, or place order on line.

How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T , L/C, Western Union are the most usual ways we are using. If you want to use other way, please tell me, we can discuss.

What’s the order procedure?
A: First we discuss order details, production details by email, Whats app or Wechat. Then we issue you an PI for your confirmation. You will be requested to do pr-epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15 days if we don’t have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.

What’s the warranty period?

A: Warranty for one year after delivery except wearing parts.

How do you take care when your clients received defective products?
A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
