J55 N80 Oil And Gas Pipes , API 5CT Pup Joint Oil And Gas EU / NU

Ask Lasest Price
Brand Name :
Model Number :	All types
Certification :	API 5CT
Price :	USD20-200/pc
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	5000 pcs per month
Delivery Time :	20-30 days

Add to Cart

Product Details
Company Profile

J55 N80 Oil And Gas Pipes , API 5CT Pup Joint Oil And Gas EU / NU

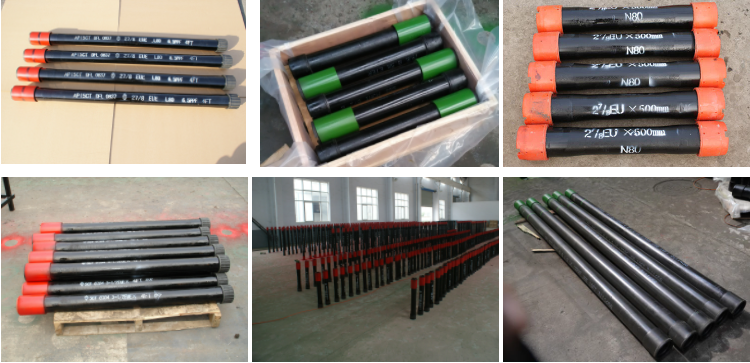

API 5CT Pup Joint And Coupling EU / NU For Oil Tubing Pipe J55 N80

Pup Joints are used to adjust the height of full length tubing or casing strings. They are also used to adjust the depth of downhole tools. Pup Joint sets are available in: Integral Premium Thread Box-by-Pin Pin-by-Pin with couplings boxed separately Pin-by-Pin with couplings hand tight Pin-by-Coupling Box Flush joint connections.

Specification of tubing pup joint
TUBING PUP JOINT	OD	GRADE	END TYPE	LENGTH (FT)
	2 3/8”	J/K/L/N/P	NUE/EUE	2/3/4/5/6/8/10/12
	2 7/8”	J/K/L/N/P	NUE/EUE	2/3/4/5/6/8/10/12
	3 1/2”	J/K/L/N/P	NUE/EUE	2/3/4/5/6/8/10/12
	4 1/2”	J/K/L/N/P	NUE/EUE	2/3/4/5/6/8/10/12

Specification of casing pup joint
CASING PUP JOINT	OD	GRADE	END TYPE
	4 1/2”	J/K/L/N/P	LTC/STC/BTC
	5”	J/K/L/N/P	LTC/STC/BTC
	5 1/2”	J/K/L/N/P	LTC/STC/BTC
	6 5/8”	J/K/L/N/P	LTC/STC/BTC
	7”	J/K/L/N/P	LTC/STC/BTC
	7 5/8”	J/K/L/N/P	LTC/STC/BTC
	7 3/4”	J/K/L/N/P	LTC/STC/BTC
	8 5/8”	J/K/L/N/P	LTC/STC/BTC
	9 5/8”	J/K/L/N/P	LTC/STC/BTC
	10 3/4”	J/K/L/N/P	LTC/STC/BTC
	11 3/4”	J/K/L/N/P	LTC/STC/BTC
	13 3/8”	J/K/L/N/P	LTC/STC/BTC

Casing Coupling

Casing couplings are important accessories for tubing and casing pipes. We can supply various API 5CT/5B/5L casing and tubing couplings from 1.66” to 13-3/8” in threads: NU, EU, STC, BTC, LTC. The casing and tubing couplings can be made in grade H40, J55, K55, N80, L80, P110 and so on.

Size and Specifications For Casing Couplings
Descriptions and size		Type of Thread	O.D*L (mm)	Weight (kg)
Casing Coupling	4-1/2"	STC	127.00*158.75	5.23
	4-1/2"	LTC	127.00*177.80	4.15
	4-1/2"	BTC	127.00*225.42	4.55
	5"	STC	141.30*165.10	4.66
	5"	LTC	141.30*196.85	5.75
	5"	BTC	141.30*231.78	5.85
	5-1/2"	STC	153.67*171.45	5.23
	5-1/2"	LTC	153.67*203.20	6.42
	5-1/2"	BTC	153.67*234.95	6.36
	6-5/8"	STC	187.71*184.15	9.12
	6-5/8"	LTC	187.71*222.25	11.34
	6-5/8"	BTC	187.71*244.48	11.01
	7"	STC	194.46*184.15	8.39
	7"	LTC	194.46*228.60	10.83
	7"	BTC	194.46*254.00	10.54
	7-5/8"	STC	215.90*190.50	12.30
	7-5/8"	LTC	215.90*234.95	15.63
	7-5/8"	BTC	215.90*263.52	15.82
	8-5/8"	STC	244.48*196.85	16.23
	8-5/8"	LTC	244.48*254.00	21.67
	8-5/8"	BTC	244.48*269.88	20.86
	9-5/8"	STC	269.88*196.85	18.03
	9-5/8"	LTC	269.88*266.70	25.45
	9-5/8"	BTC	269.88*269.88	23.16
	10-3/4"	STC	298.45*203.20	20.78
	10-3/4"	BTC	298.45*269.88	25.74
	11-3/4'	STC	323.85*203.20	22.64
	11-3/4'	BTC	323.85*269.88	28.03
	13-3/8"	STC	365.12*203.20	25.66
	13-3/8"	BTC	365.12*269.88	31.77
	16"	STC	431.80*228.6	34.91
	16"	BTC	431.80*269.88	40.28
	18-5/8"	STC	508.00*228.60	51.01
	18-5/8"	BTC	508.00*269.88	62.68
	20"	STC	533.40*228.6	43.42
	20"	LTC	533.4*292.10	57.04
	20"	BTC	533.40*269.88	50.10

Tubing Coupling
Couplings are important accessories for tubing and casing pipes. We supply various API 5CT/5B/5L casing and tubing couplings from 1.66” to 13-3/8” in threads: NU, EU, STC, BTC, LTC. The casing and tubing couplings can be made in grade H40, J55, K55, N80, L80, P110 and so on.

Technical Specifications of Tubing Coupling

Tubing Coupling Size (in)	O.D. (in)	Minimum Length(in)	Weight (lbs)
Tubing Coupling Size (in)	Round Thread	Round Thread	Round Thread
2-3/8	2.875	4-1/4	2.82
2-7/8	3.500	5-1/8	5.15
3-1/2	4.250	5-5/8	8.17
4	4.750	5-3/4	9.58
4-1/2	5.200	6-1/8	10.77
