45A High Pressure Dth Hammer Drill Bits Truck Mounted For Impactor

Ask Lasest Price
Brand Name :
Model Number :	All types
Certification :	ISO
Price :	USD800-3000/set
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	300 sets per month
Delivery Time :	15-30 days

Add to Cart

Product Details
Company Profile

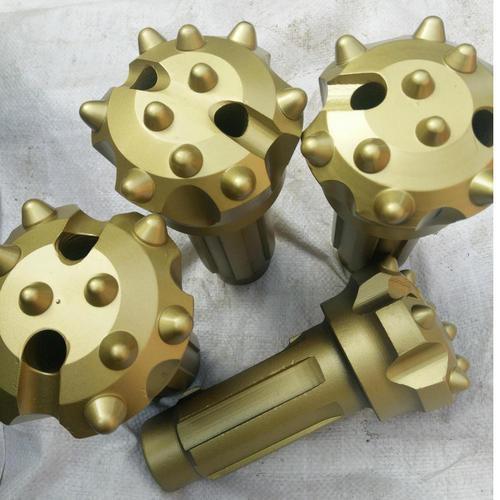

45A High Pressure Dth Hammer Drill Bits Truck Mounted For Impactor

DTH Hammer Used 45A High Pressure Rock Drilling DTH Drill Bit For DTH Impactor

DTH Hammer Bit:

DTH bit is also our main product. After many years search, we have rich experience in development and manufacturing high quality products, which adopted high-quality raw materials, advanced technology and passed through strictly inspection.

Features:

1. High and low air pressure down-the-hole drill bits
2. Low air pressure holeDia.: 65-220mm
3. High air pressure hole Dia.: 85-305mm
4. Face type: Drop center/concave/convex/double gauge/flat
5. Our DTH Bit can be suitable for many types of DTH Hammer, such as XL, Mission, COP, IR, Mach, Demag, SD, Bulroc, Halco Mach, Digger etc.
6. Inch available: 3", 4", 5", 6", 8", 12", etc...

DTH drill bits
1. Customized acceptable
2. Bit diameter, face shape
3. Carbide button shape
4. qty of air hole

Product features
1. Ingenious Design, High Penetration Rate and Long Service Life.

2. Different product features match different rock formations.
3. High grade steel and advanced heat treatment offer Superior Wear Resistance.
4. Easy for Operation and Cost Effectiveness.

Main button bits diameters:
We need to confirm the following Product Specification before placing an order:
1. The type of drill bit;
2. The head diameter of drill bit;
3. Bit face shape Choice: (Main shapes are: Drop Center, Concave Face, Convex Face, Double Gauge Face, Flat Face)
4. Shape of alloy teeth. (Main tooth shape: Domed/Round Button, Parabolic/Semi-Ballistic Buttons, Ballistic button, Sharp button, Flat button)

45A High Pressure Dth Hammer Drill Bits Truck Mounted For Impactor

DTH bits specifications:

Bit Shank Series	Bit Size(mm)	Splines Quantity	Matchable Hammer Model
DHD3.5	90;110;105	8	IR3.5
DHD340A	108;115;121;127;130	8	IR340
DHD350R	140;148;152	8	IR350
DHD360	155;159;165;178;190;203	8	IR360
DHD380	194;203;219;222;254;270;305	10	IR380
QL40	108;115;121;127;130	10	QL40
QL50	140;148;152	12	QL50
QL60	155;159;165;178;190;203	12	QL60
QL80	194;203;219;222;254;270;305	16	QL80
SD4	108;115;121;127;130	8	SD4
SD5	140;148;152	8	SD5
SD6	155;159;165;178;190;203	8	SD6
SD8	194;203;219;222;254;270;305	8	SD8

1. All diameters as above are only our standard diameters, but other diameters are also available upon request.

2. The unit weight for each size is for reference only.

3. Face design, buttons shape, buttons configuration and flushing holes number must be confirmed when the order is confirmed.

4. Please be cautious when order some bigger diameter of button bits since some bigger diameters are over sized.

5. Other shanks bits are also available as per request.

45A High Pressure Dth Hammer Drill Bits Truck Mounted For Impactor
