Conventional Beam Oilfield Pumping Units With Electric Motor

Ask Lasest Price
Brand Name :
Model Number :	C series
Certification :	API 11E
Price :	USD10000-250000/set
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	100 sets per month
Delivery Time :	25-45 days

Add to Cart

Product Details
Company Profile

Conventional Beam Oilfield Pumping Units With Electric Motor

Factory Price Sucker Rod Oilfield Conventional Beam Pumping Units With Electric Motor Equipment

Brief Introduction of Pumping Unit
Conventional pumping units with walking beams, balanced by cranks, are among the most common and most widely used power units in rod production on oil fields.Products comply with Specifications of Pumping Units (API Spec 11E) and other related standards, and have acquired the authorization to use Official API Monogram.

Technical Performance & Characteristics
1.Modular and virtual manufacturing technologies are adopted in design, so that the structure of products is optimized and components are highly standardized, generalized and seriated.
2.Key structural elements are subject to finite element analysis to ensure stable performance and high reliability.
3.Reducers are driven by double-arc symmetrical split or involute herringbone wheels that are properly sealed and distinguished with low noise, smooth operation, reliable and durable service.
4.The entire machine features simple operation and maintenance and extended service life.

Technical Parameters

NO.	Model	Load Rating (lbs)	Stroke length (in)	Stroke frequency (min -1)
1	C-40D-76-48	7600	48;37;26	6;9;12
2	C-57D-76-54	7600	54;41;28	6;9;12
3	C-80D-133-54	13300	54;43;31	6;9;12
4	C-80D-119-64	11900	64;52;40	6,8,10
5	C-114D-119-86	11900	86;76;59	6,8,10
6	C-114D-143-64	14300	64;52;40	6,8,10
7	C-114D-143-74	14300	74;62;50	6,8,10
8	C-160D-173-86	17300	86;74;61	6,8,10
9	C-160D-200-76	20000	76;62;51	6,8,10
10	C-228D-213-120	21300	120;102;85	5,7,9
11	C-228D-246-86	24600	86;74;61	5,7,9
12	C-228D-173-100	17300	100;86;71	5,7,9
13	C-320D-305-120	30500	120;102;85	5,7,9
14	C-320D-256-120	25600	120;100;86	5,7,9
15	C-456D-305-120	30500	120;102;85	5,7,9
16	C-456D-305-144	30500	144;124;106	4,6,8
17	C-640D-365-144	36500	144;124;106	4,6,8
18	C-640D-365-168	36500	168;142;116	4,6,8
19	C-640D-305-168	30500	168;142;116	4,6,8
20	C-640D-365-192	36500	192;164;136;110	4,5,6
21	C-912D-365-144	36500	144;124;106	4,6,8
22	C-912D-365-168	36500	168;142;116	4,6,8
23	C-912D-305-192	30500	192;168;135;120,95,74	4,5,6
24	C-912D-365-192	36500	192;164;136;110	4,5,6
25	C-912D-427-144	42700	144;124;106	4,6,8
26	C-912D-427-168	42700	168;142;116	4,6,8
27	C-912D-427-192	42700	192;164;136;110	4,6,8
28	C-1280D-365-192	36500	192;164;136;110	4,5,6
29	C-1280D-427-192	42700	192;164;136;110	4,5,6
30	C-1280D-427-216	42700	216,192;168;144	4,5,6
31	C-1280D-427-240	42700	240;207;175;145	4,5,6
32	C-1824D-427-192	42700	192;164;136;110	4,5,6
33	C-1824D-427-216	42700	216;192;168;145	4,5,6

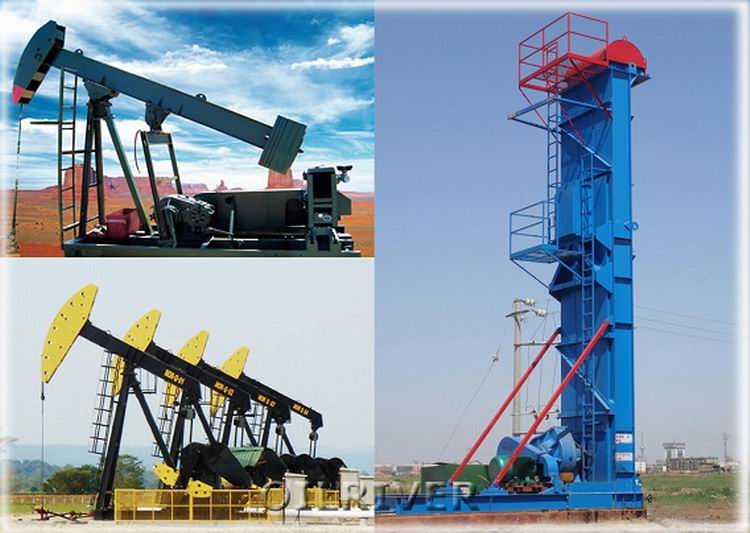

Products Show:

Company Information:

About us

Dongying Machinery Equipment Co.,Ltd is a professional supplier of various petroleum equipment, including drilling rig accessories, well control system, drill string, handling tools, downhole tools, OCTG, drilling tools, cementing tools and sapre parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.

Certificates

API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, ISO 9001, ISO14001, ISO18001 etc.
