380V 220V Oilfield Production Equipment , API Belt Pumping Unit

380V 220V API Spec 11E Belt Pumping Unit For For Heavy Oil Well Production

Brief Introduction of Belt Pumping Unit

The belt pumping units is the patented product . It has mixed together major features and advantages of all kind of pumping units through years of research and development. As a unique engineering breakthrough, the 100% mechanical is especially suitable for producing high volume fluid in deep wells with rod pump and heavy oil recovery. We had developed up to seven types. Lots of products had been exported to America, Canada, Cuba, Argentina, Kazakhstan, Uzbekistan, Middle East and other countries in addition to be using in Shengli, Dagang, Liaohe oilfield and almost every big oilfield in China. It has proved that the pump unit with the international advanced level combines the advantages of high efficiency, reliability and energy saving.

Main Advantages:

1. Slow, Long Strokes: Long stroke make high coefficient of fullness, less fluid pounding;Slow period means less wear on downhole equipments and little cost.
2. Belt Transmission: A long life heavy duty belt transmission can absorb the shock during stroke reverse, thus effectively reduce the stress on downhole components to make rod strings run smoothly.
3. Low Torque Demand: The torque demand is greatly reduced due to the short torque arm which is only 0.46m.
4. Optimum Structure Design, Safety and Convenience: Two sets of brake systems with the automatic braking device ensure the units safety absolutely
5. High Reliability and Low Maintenance: perfect rigidity through optimum design.
6. Auxiliary system is fairly complete, not only for high volume production, but also for deep wells low volume production.

Conventional pumping units with walking beams, balanced by cranks, are among the most common and most widely used power units in rod production on oil fields.Products comply with Specifications of Pumping Units (API Spec 11E) and other related standards, and have acquired the authorization to use Official API Monogram.

Technical Parameters

Type	1100	1000	900	800	700	600	500
SPECIFICATIONS
m Stroke Length	8	8	7.3	7	6	5	4.5
t Peak Polished	22.7	20	16.3	14	12	10	8
Rod Load
min-1 Max of Strokes	4	4	4	4	4	5	5
Per Minute
min-1 Min of Strokes	Very Low
Per Minute
t Counterweight Base	6.1	4.6	4.2	2.7	2.4	1.9	1.7
t Counterweight-Max	8.6	9	7.2	7.1	6.4	4.8	3.5
Aux.
t Shipping Weight	26.5	22	19.5	16.5	15.5	12	11
External Size	7.4×2.6	7.4×2.4	6.6×2.4	6.1×2.1	5.5×2.1	5.5×1.9	5.2×1.9
(L×W×H)	×13.4	×13.4	×12.4	×11.8	×10.8	×8.9	×8.2
Shipping Size	13.4×2.6	13.4×2.4	12.4×2.4	11.8×2.1	10.8×2.1	8.9×1.9	8.2×1.9
(L×W×H)	×3.1	×2.8	×2.8	×2.6	×2.5	×2.5	×2.5
Motor power	75	75	55	45	37	22	18.5
kN·m Torque of Gearbox	37	37	37	26	26	18	13
Working Temperature	-40℃~+50℃
Electromagnetism	Yes	Yes	Yes	Yes	Yes	N/A	N/A
Automatic Braking
System
Note: Automatic Braking System is available
according to the customer’s requirements

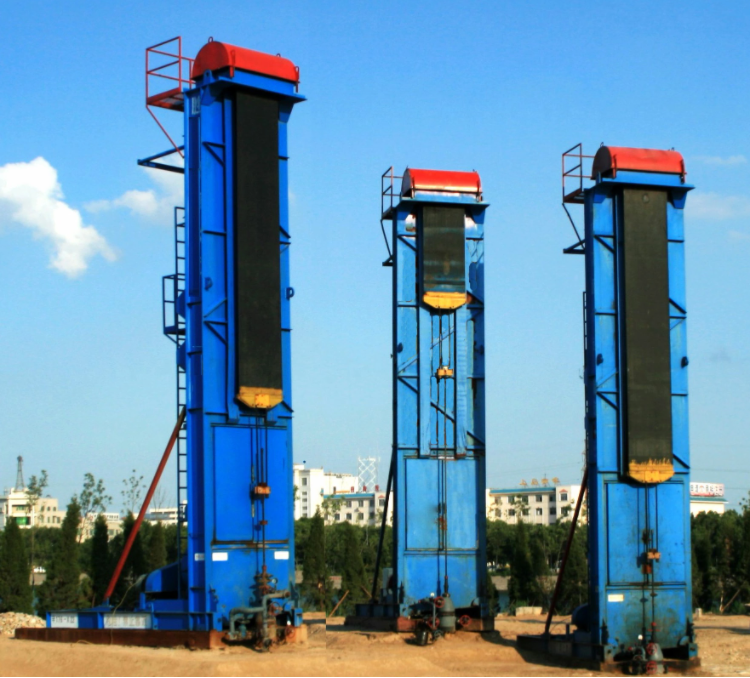

Products Show:

Company Information:

About us

Dongying Machinery Equipment Co.,Ltd is a professional supplier of various petroleum equipment, including drilling rig accessories, well control system, drill string, handling tools, downhole tools, OCTG, drilling tools, cementing tools and sapre parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.

Certificates

API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, ISO 9001, ISO14001, ISO18001 etc.
