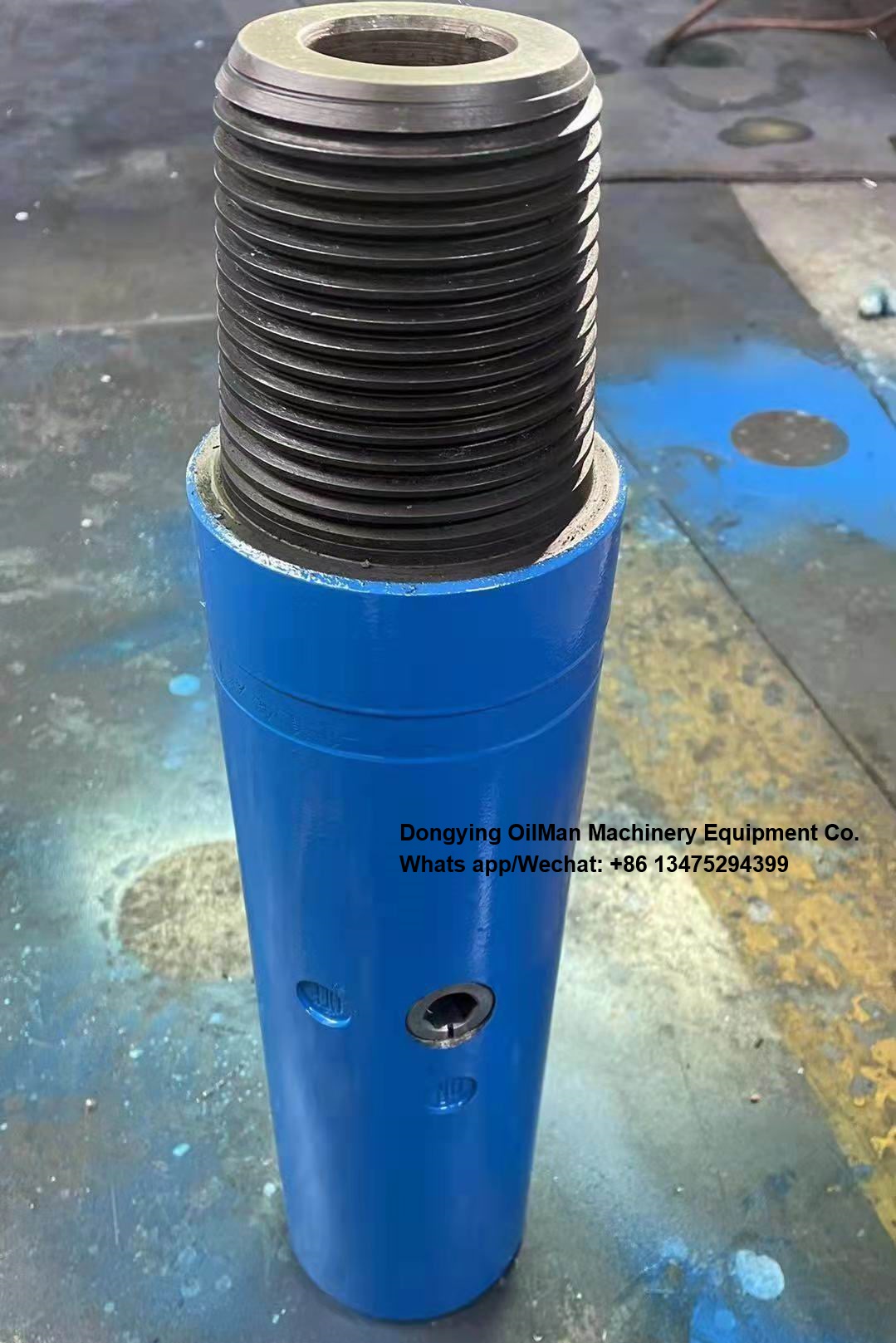

Manually Operated Kelly Safety Valve 5000/10000/15000psi for Oil Drilling

API Drill Stem Tools 5000/10000/15000psi Manually Operated Kelly Cock Valve

Description of kelly valve

Kelly Valve also named Kelly Cock/Drill Pipe Safety Valve allowing free passage of drilling fluid without pressure loss. The valve can be used as a dill pipe safety valve or upper Kelly valve to control blowout pressures, or as a lower Kelly Valve to prevent loss of drilling fluid when the Kelly is disconnected. It has a pressure rating of 5,000psi or 10,000psi or 15,000psi

Specifications

Kelly valve is a manually operated ball type drill stem valve; it is divided into upper Kelly valve and lower Kelly valve.

Kelly Valve features:

The sealing principle for Kelly valve is that the ball is positioned and provided with proceeding stress by the lower seat supported by spring load and a close seal between ball and ball seat is provided.

During normal drilling operation, the hole is kept unblocked by turning the stem to be “on” position; In case of kick or blowout, turn the operating stem to be “off” position to close off the internal bore of drill string, the kick or blowout accident is avoided due to a high pressure sealing situation between ball and ball seat.

When ordering please specify:

Upper or Lower type;

Tool OD;

Working Pressure: 5,000 / 10,000 / 15,000 PSI;

Tool connection.

Specifications - Upper Kelly Valve

Model	O.D. (mm)	Thread connection (LH)	I.D. (mm)	Max.sealing pressure(Mpa)
CS 146	146	4 1/2 REG	50	68.6
CS 200	200	6 5/8 REG	76.2	68.6

Specifications - Lower Kelly Valve

Model	O.D. (mm)	Thread connection	I.D. (mm)	Max.sealing pressure(Mpa)
XS105	105	NC31	41.3	68.6
XS121	121	NC38	50	68.6
XS127	127	NC38	50	68.6
XS165	165	NC46	61	68.6
XS178	178	NC50 , 5 1/2FH	71.4	68.6
