Alloy Steel Oil Well Torque Anchor API 7-1 For PCP Screw Pump

Ask Lasest Price
Brand Name :
Model Number :	4 1/2" - 9 5/8"
Certification :	API 7-1
Price :	USD100-2000/pc
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	500 pcs per month
Delivery Time :	7-30 work days

Add to Cart

Product Details
Company Profile

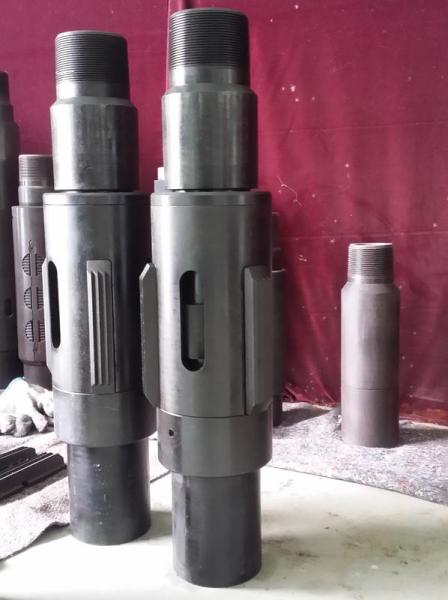

Alloy Steel Oil Well Torque Anchor API 7-1 For PCP Screw Pump

API 7-1 Oil Well Alloy Steel 5 1/2" Torque Anchor For PCP Pump Screw Pump

Description of Torque Anchor:

Torque anchor is used to take the reactive torque given by the friction created between the rotor and stator of the pump with progressive cavities, to prevent the tubing from unscrewing. It is mounted under or just above the pump. It uses the principle of a mandrel with two slips (one floating,one stationary) camming in opposite directions anchoring the tubing string to the inner casing wall.

The Extra Bypass is a standard feature of the Torque Anchor that offers a larger area around the torque anchor for gas bypass and to discourage sand bridging.

By adding a set of drag blocks, the damaging harmonics are absorbed before reaching the anchor blocks that are engaged onto the casing.

Technical Specifications for Torque Anchor:

Casing size (inch)	Anchor body OD (mm)	Actual anchor OD(mm)	Torque anchor ID(mm)	Connections (inch)
4-1/2”	92.2	92.2	50.8	2-3/8”EU
5-1/2”	112.8	108.0	62.0	2-7/8”EU
6-5/8”	138.4	133.4	62.0	2-7/8”EU
7”	148	143.0	76.0	3-1/2”EU
9-5/8”	190	209.6	100.5	4-1/2”EU

If any needs, pls contact us freely:

Dongying OilMan Machinery Equipment Co.

Address: North Two Road, Dongying City, Shandong Province, China.

Mob/whats app/we chat:+86 13475294399

*Email: christal@oilmancn.com
