Hole Opener Oilfield Downhole Tools , API HDD Rock Reamers

China Oil Well Drilling API Fixed Diameter Hole Opener/HDD Rock Reamer

Description of Hole Opener

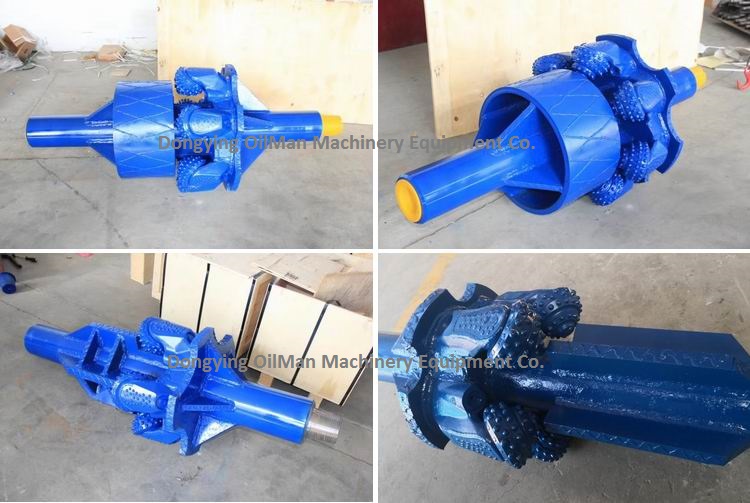

The Fixed Diameter Hole Opener is made of tough heat treated alloy steel for maximum strength. Cutter arms, equipped with removable cutter, are hardfaced and welded on body. Cutters are available in three types: type SM for soft to medium formation, type MH for medium to hard formation and type XH for hard formation. The hole openers have three or six jet tubes with replaceable nozzles, so that jet streams quickly clean the enlarged hole.

When ordering or requesting quotation, if size other than above specifications, please specify clearly. For more details and more products, Please feel free to contact us.

Technical Specifications of Hole Opener:

Technical specifications and parameters
Hole open diameter	Qty of cutters	Min.Pilot hole	Fishing neck diameter	I.D.	Top Connection(Pin)	Bottom Connection(Box)	Overall length
12 1/4"	3	8 1/2"	8"	1 1/2"	6 5/8REG	6 5/8REG	55"
16"	3	10"	9 1/2"	2 1/4"	7 5/8REG	6 5/8REG	59"
17 1/2"	3	10"	9 1/2"	2 1/4"	7 5/8REG	6 5/8REG	59"
22"	3	12 3/4"	9 1/2"	2 1/3"	7 5/8REG	6 5/8REG	69"
23"	3	12 3/4"	9 1/2"	3"	7 5/8REG	6 5/8REG	69"
24"	3	14"	10"	3"	7 5/8REG	7 5/8REG	69"
26"	3	17 1/2"	10"	3"	7 5/8REG	7 5/8REG	69"
36"	4	26"	10"	3 1/2"	7 5/8REG	7 5/8REG	87"
