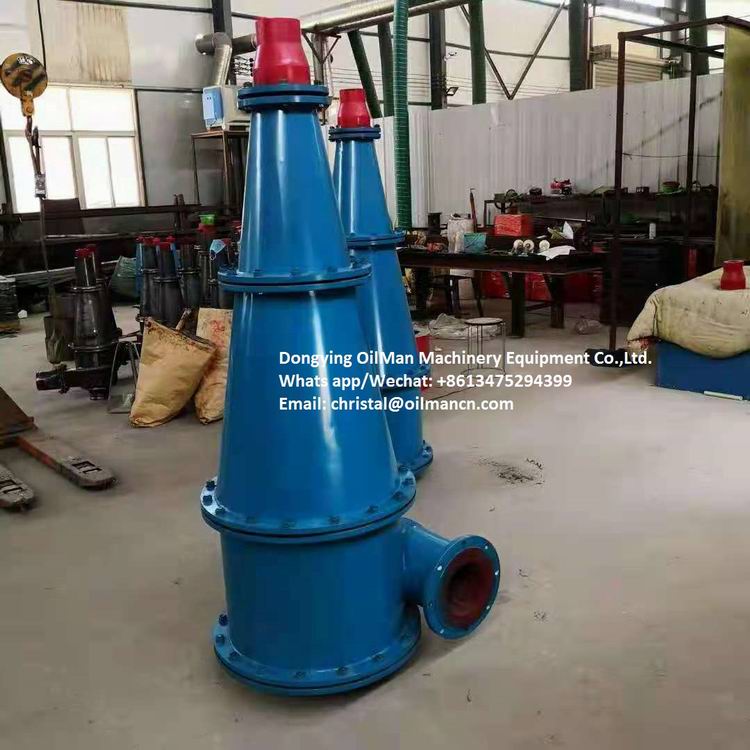

Polyurethane Solid Control System Drilling Cyclone And Hydrocyclone

High Efficiency Solid Control System Cyclone And Hydrocyclone For Desander And Desilter

Descriptions of Hydrocyclone:

Hydrocyclone is a common solid-liquid separation equipment,which is widely used in mineral processing,chemical industry,wastewater treatment and other fields.The basic principle is to use the centrifugal force generated by the water flow inside the cyclone,making solid particles and liquid separation. With simple design,small footprint and easy operation, hydrocyclone is one of the important equipments in separation technology.

Working Principle:

The feed is introduced under pressure through the trangential entry which imparts a swirling motion to the pulp.This generates a vortex in the cyclone,with a low pressure zone along the vertical axis.An air core develops along the axis,normally connected to the atmosphere through the apex opening,but in part created by dissolved air coming out of solution in the zone of low pressure.

Specifications of Hydrocyclone:

Specification	Diameter (mm)	Inlet pressure (MPa)	Capacity (m3/h)	Cut size (μm)
FX840	840	0.04-0.15	500-900	74-350
FX710	710	0.04-0.15	400-550	74-250
FX660	660	0.04-0.15	260-450	74-220
FX610	610	0.04-0.15	200-300	74-200
FX500	500	0.04-0.2	140-240	74-200
FX400	400	0.06-0.2	100-170	74-150
FX350	350	0.06-0.2	70-160	50-150
FX300	300	0.06-0.2	45-90	50-150
FX250	250	0.06-0.3	40-80	40-100
FX200	200	0.06-0.3	25-40	40-100
FX150	150	0.08-0.3	14-35	20-74
FX125	125	0.1-0.3	8-20	25-50
FX100	100	0.1-0.3	8-20	20-50
FX75	75	0.1-0.4	5-10	10-40
FX50	50	0.1-0.4	2-5	5-40
FX25	25	0.1-0.6	0.3-1	5-20
FX10	10	0.1-0.6	0.05-0.1	1-5

Complete soilds control system we supply:

A complete solid control system,including Shale Shaker, Mud Cleaner ,Desander ,Desilter, Centrifuge, Cutting Dryer ,Agitator, Mixing Hopper, Flare Igniter, Various Tanks, Pumps, Degassers etc .
