Oil Drilling Rig Equipment Drilling Mud Tank Agitator Manufacturer In China

Ask Lasest Price
Brand Name :
Model Number :	MA Series Mud Agitator
Certification :	API
Price :	USD1000-5000/set
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	200 sets per month
Delivery Time :	7-30 work days

Add to Cart

Product Details
Company Profile

Oil Drilling Rig Equipment Drilling Mud Tank Agitator Manufacturer In China

Oil Drilling Rig Equipment Drilling Mud Tank Agitator Manufacturer In China

Descriptions of Mud Agitator:

MA series mud agitator is part of the drilling fluids solids control equipment, which is mainly used to agitate and mix the drilling mud to prevent solids particles from depositing in the circulating tank and to stabilize the performance of drilling fluids.

It is composed of explosion-proof motor, speed reducer, motor base and blade. The motor and speed reducer, speed reducer and impeller shaft are connected by steel coupling. The impeller is welded with four blades.

Features of Mud Agitator:

1. Helical-bevel gearbox

2. Explosion-proof electric motor

3. Able to process 20 ppg drilling fluids

4. Power available ranging from 2.2 to 22KW

5. Compact, quiet, smooth and easy to maintain

Descriptions of Mud Agitator:

Agitator Model	MA55	MA75	MA110	MA150	MA220
Motor Power kW/HP	5.5/7.5	7.5/10	11/15	15/20	22/30
Impeller Speed RPM	72	72	73	73	73
Impeller Diameter mm/in	600 /23.6	750 /29.5	850 /33.5	900 /35.4	(1000/900) (39.4/35.4)
Ration	20:1/25:1	20:1/25:1	20:1/25:1	20:1/25:1	20:1/25:1
Dimension mm/in	(1020x660x560) (40.2x23.6x22)	(1060x600x604) (41.7x23.6x23.8)	(1200x640x673) (47.3x25.2x26.5)	(1290x710x685) (50.8x28x27)	(1428x860x705) (56.3x33.9x27.8)
Power	380V/50Hz or 460V/60Hz Or Customized
Shaft Length	According to tank depth

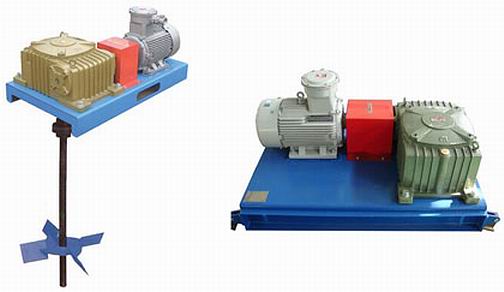

Products Show:

Packaging & Shipping:

Complete soilds control system we supply:

A complete solid control system,including Shale Shaker, Mud Cleaner ,Desander ,Desilter, Centrifuge, Cutting Dryer ,Agitator, Mixing Hopper, Flare Igniter, Various Tanks, Pumps, Degassers etc .

If any needs, pls contact us freely:

Dongying OilMan Machinery Equipment Co.

Address: North Two Road, Dongying City, Shandong Province, China.

Mob/whats app/we chat:+86 13475294399

*Email: christal@oilmancn.com
