Oilfield Drilling Solids Control Horizontal Centrifugal Sand Pump

Ask Lasest Price
Brand Name :
Model Number :	SB Series
Certification :	API
Price :	USD200-5000/set
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	200 sets per month
Delivery Time :	7-30 work days

Add to Cart

Product Details
Company Profile

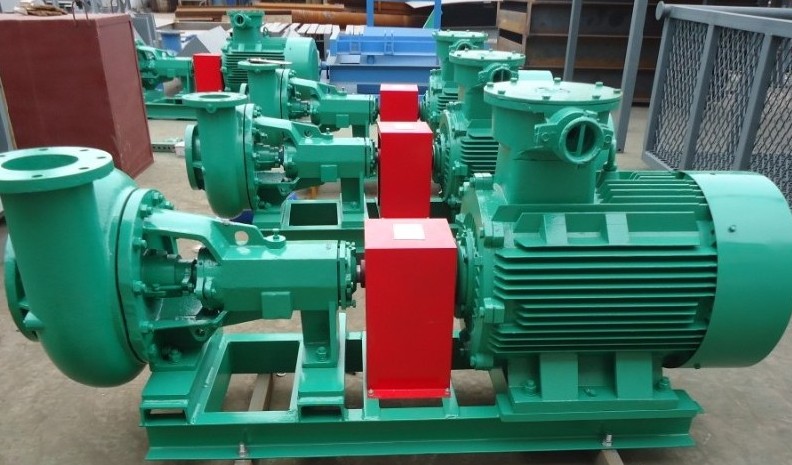

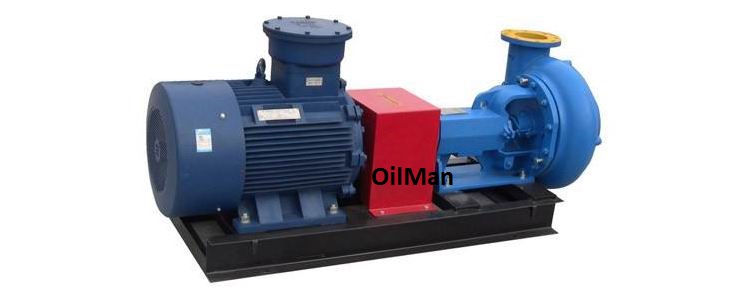

API Petroleum/Hdd/Oilfield Drilling Solids Control Horizontal Centrifugal Sand Pump

API Petroleum/Hdd/Oilfield Drilling Solids Control Horizontal Centrifugal Sand Pump

Brief introduction about sand pump

Sand pump is used to provide drilling liquid with a certain discharge capacity and pressure to desander,desilter and mud pump. The centrifugal sand pump developed by the company through over more than ten years of site applications and improvements is in the domestic advanced level, either in technical performance or in sealing life, and reaches the same level as the similar products abroad.

The pump has two types of drive, electro motion and belt drive. New products can be designed and provided according to customers special requirements.

Main Technical Parameters

Model	Motor (KW)	Flow rate (m3/h)	Head (m)	Efficiency (%)	Electric system
SB8×6-14	75	256	43	64	380V/50Hz
		320	40	65
		416	35	64
SB8×6-12		335	43	66	460V/60Hz
SB8×6-13	55	232	35	60	380V/50Hz
		290	33	64
		377	28	65
SB6×5-12		196	48	61	460V/60Hz
SB6×5-13	45	144	37	57	380V/50Hz
		180	34	60
		234	29	55
SB5×4-14		149	61	58	460V/60Hz
SB6×5-12	37	128	32	57	380V/50Hz
		160	30	60
		208	25	57
SB5×4-12		112	45	58	460V/60Hz
SB6×5-11	30	160	23	59	380V/50Hz
		200	21	62
		260	20	62
SB5×4-11		112	37	57	460V/60Hz
SB5×4-12	22	72	32	56	380V/50Hz
		90	30	56
		117	27	55
SB5×4-10		105	30	57	460V/60Hz
SB5×4-11	18.5	72	26	55	380V/50Hz
		90	24	56
		117	21	53
SB4×3-12		55	46	48	460V/60Hz
SB4×3-13	15	40	42	46	380V/50Hz
		50	40	48
		65	36	53
SB4×3-11		54	35	47	460V/60Hz
SB4×3-12	11	36	32	46	380V/50Hz
		45	30	47
		58.5	27	51
SB3×2-12		28	45	40	460V/60Hz
SB3×2-12	7.5	40	26	46	380V/50Hz
		45	24	46
		57	21	49
SB3×2-11		25	35	41	460V/60Hz
SB3×2-11	5.5	16	25	38	380V/50Hz
		20	23	39
		26	20	38

Packaging & Shipping:

Complete soilds control system we supply:

A complete solid control system,including Shale Shaker, Mud Cleaner ,Desander ,Desilter, Centrifuge, Cutting Dryer ,Agitator, Mixing Hopper, Flare Igniter, Various Tanks, Pumps, Degassers etc .
