Hydraulic Drill Pipe Power Tong Alloy Steel API 7K Specification

Ask Lasest Price
Brand Name :
Model Number :	TQ Series Casing Power Tong
Certification :	API 7K
Price :	USD10000-50000/piece
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	100 sets per month
Delivery Time :	15-30 work days

Add to Cart

Product Details
Company Profile

Hydraulic Drill Pipe Power Tong Alloy Steel API 7K Specification

Oil Drilling And Gas Hydraulic Drill Pipe /Casing /Tubing Pipe Power Tong From China Supplier

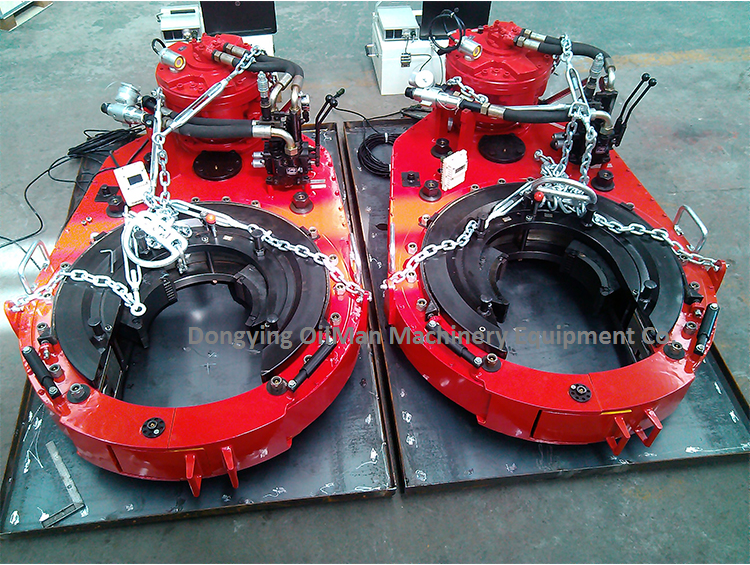

TQ series of casing tongs are widely used for making-up or breaking-out of casings or pipes. The casing tong features high-efficiency, safety, reliability, labor-saving, and can ensure connection quality. Tong head is designed as open and is fitted with two jaws which can ensure reliable gripping. Air type clutch is utilized as gearshifting mechanism, so it is possible to change gear under running. The series of casing tongs can be configured with torque device to perform computer monitoring and managing on pressure, torque and rounds. The casing tong has been granted with National Invention Patent. The casing tongs are designed and manufactured according to SY/T5074 and API Spec 7K “Specification for Drilling Equipment”

Technical Parameter for Casing Power Tong:

Model		TQ178-16	TQ340-20Y	TQ340-35	TQ178-16Y	TQ340-35Y	TQ508-70Y	TQ340-50
Size rang	mm	101.6-178	101.6-340	139.7-340	101.6-178	101.6-340	244.5-508	139.3-340
	in	4"-7"	4"-13"3/8	5"1/2-13"3/8	4"-7"	4"-13"3/8	9"5/8-20"	5"1/2-13"3/8
Hydraulic system pressure rating	Mpa	18	16	18	18	18	20	17.2
	Psi	2610	2320	2610	2610	2610	2900	2494
Hydraulic system flow ratigin	L/min	114	114	114	114	114	140-220	120
	gpm	30.1	30.1	30.1	30.1	30.1	36.9-58.1	31.7
Max.torque	kN.m	2.4-3	3.7	2.5-3	2.4-3	4.0-5.0	8.4-10.7	4
	ft.ibf	1770-2200	2730	1844-2200	1770-2200	2950-3680	6195-7891.25	2950
	kN.m	/	/	6.0-7.5	/	/	/	11
	ft.ibf			4420-5530				8103
	kN.m	16	20	35	15-18	27-30	48.9-70	50
	ft.ibf	11800	14750	25800	11060-13280	19900-22120	36063.75-51625	36851
RPM	rpm	54-97	50-80	60-86	54-79	80-98	30.5-48	72.8
	rpm			21-30				27.4
	rpm	9-13.1	6.-14.	2.6-5.3	8.5-12	12.-16	4.6-7.3	5.4
Overall dimensions	mm	1540760 740	1520850 670	1540900 860	1500760 680	1560900 850	20801280 760	1540892 908
	in	613029	603426	613634	593027	613533.5	825030	603533
Weight	Kg	580	560	780	570	780	1550	880
	Ib	1280	1234	1720	1250	1720
