High Pressure 2" 3" 4" Weco Fig1502 Hammer Unions For Pipe Fittings

Product Overview of Hammer Unions:

(a).Hammer unions manufactured by our company is mainly used in cementing, crushing, acidifying, test and blocking,Kill line, high pressure manifolds and vehicle-mount system;Underground work is used to connect the various parts of the pipeline construction. Flexible operation, high voltage and other characteristics;
(b).The high pressure wing union designed and manufactured by our company includes thread union and welding union, with specification 1"~12" and cold working pressure 14Mpa-105Mpa (2000psi-15000psi);
(c).High pressure hummer union is marked with apparent connection buckle and pressure rating;
(d).The anti-sulfuretted hydrogen hammer union is workable under acid environment and shows grass green.

Design Features

(a).With precise ball surface and 90 degree conical surface processed by precise machine, Wing hammer union is of high strength and pressure-bearing capacity;
(b).The LP thread, UN thread, EU thread, processed by numerically-controlled machine and imported cutter, has high precision and strong sealing, ensures high press and sealing;
(c).The seal ring is made by imported sizing material. The seal ring can keep strong sealing for joints and avoid joints from corrosion, and prolong the product life;
(d).The wing hammer union which specially applicable to acid environment is designed and manufactured in strict accordance with NACE MR0175;
(e).Wing unions joints are all ACME thread, thus it is easy to assemble, disassemble without any tools and it has self-lock function. The product parts are universal internationally and can be exchanged.

Main Technical Parameters for Hammer Union

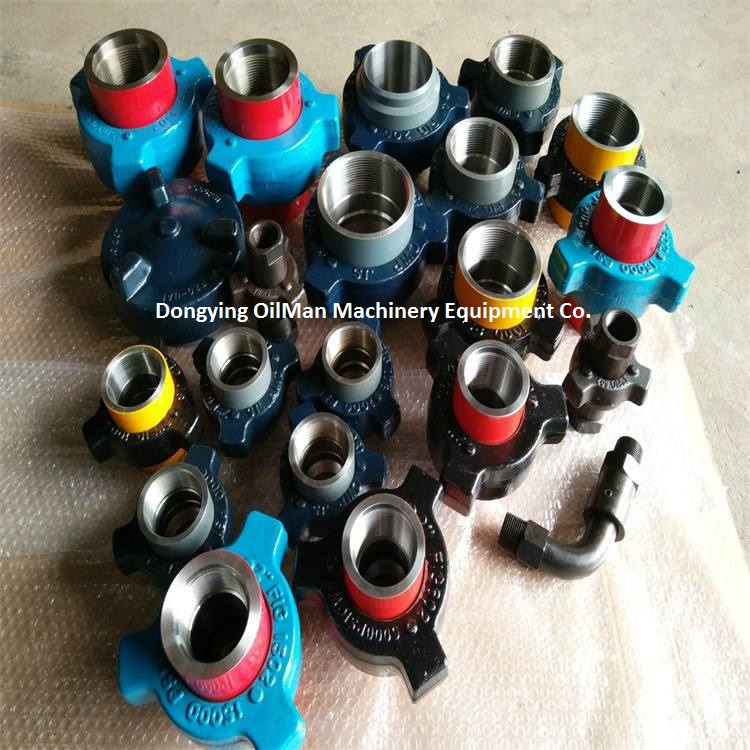

Products Show:
