API weco Female Hammer Union Fig 100 206 400 For Oilfield Manifold

Ask Lasest Price
Brand Name :
Model Number :	FIG 1502 1002 602 400 402 206 100
Certification :	API
Price :	USD20-200/pc
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	20000 pieces per month
Delivery Time :	15-25 work days

Add to Cart

Product Details
Company Profile

API weco Female Hammer Union Fig 100 206 400 For Oilfield Manifold

API Forged FMC WECO Fig 100 206 400 602 1002 1502 Female Hammer Union For Oilfield Manifold

Product Overview of Hammer Unions:

We can provide various hammer unions based on the introduced technologies from SPM, including thread connection type, welding type and H2S service unions. 1"~4" and CWP of 1000Psi~20000Psi(7MPa~140MPa) unions are available. For easy identification, unions with different pressure ratings will be painted in different colours, and there are evident marks indicating size, connecting mode and pressure ratings.

The model of conventional union (thread connection): FIG100,FIG200,FIG206,FIG400,FIG402,FIG602,FIG1002,FIG1502;rated: 1000psi(7MPa)~15000psi(105MPa).

The model of Welding Union: FIG20,FIG60, FIG1002,FIG1502,FIG2002;rated: 2000psi(14MPa)~20000psi(140MPa).

The model of H2S welding union: FIG602,FIG1002,FIG1502,FIG2202,Tr120×6,Tr150×6,Tr180×8;rated: 5000psi(35MPa)~15000psi(105MPa).

Reliable Sealing performance
Seal rings are made of quality rubber compound which greatly enhance load-bearing capacity and sealing performance and protect connectors from erosion. Different pressures and applications have different sealing method.

Fast Installation
Wherever they are, wing nuts and rigid ACME will ensure quick installation or dismantling without special tools.

Highly Interchangeable
All unions are made in English system, and can be interchanged with products in international market. Seal rings are fully interchangeable with SPM or FMC equivalent products; Marks of size and pressure in wing nuts are formed in die-forging model, same as international products.

Advanced Machining and Inspection Method
Spherical adapters machined by precision NC machine tools and LP thread machined by special cutting tools can ensure high sealing performance; Wing nuts machined by NC machines have high strength and load-bearing capacity; Welding materials and welding grooves conform to API 16C; Unions for sour gas environment are strictly manufactured to NACE-MR0175 and API RP-14E.

Main Technical Parameters for Hammer Union

Size	SMLS ---1"-12"
type	fig100, fig200, fig206, fig207, fig300, fig400, fig602, fig1502
Standard	API 6A
Material	carbon steel: 45#, 20#, Q345 etc. Stainless steel: ASTM SS304, 304L, 316, 316L, 321, 1Cr18Ni9Ti, 00Cr19Ni10 etc.
Surface	Yellow, Red, Blue, Orange or upon customer’s requirement
Certification	ISO 9001:2008
Packing	Plywood cases, pallets, or as per your request.
Application	Petroleum, chemical, machinery, electric power, shipbuilding, paper making, construction etc
Port of delivery	Shanghai port, Tianjin port, Qingdao port etc.

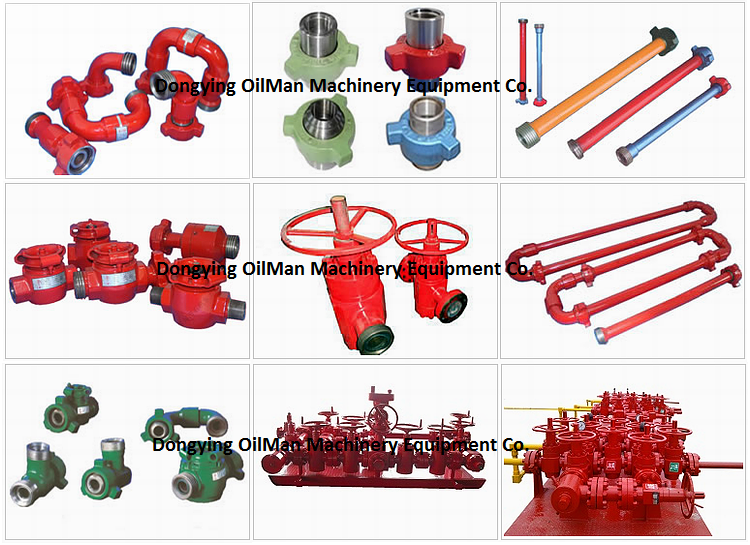

Products Show:

API Forged FMC WECO Fig 100 206 400 602 1002 1502 Female Hammer Union For Oilfield Manifold

Related Products:

Package & Shipment:

Export wooden case for the shipment of API Forged FMC WECO Fig 100 206 400 602 1002 1502 Female Hammer Union For Oilfield Manifold

Any enquiry please contact us by email: christal@oilmancn.com.

Visit our website: www.oilmanchina.com for more products information.

WhatsApp/WeChat:+86 13475294399
