13 5/8" 5000psi Wellhead Equipment Casing Head Assembly/Wellhead Tubing Head

13 5/8" 5000psi Wellhead Equipment Casing Head Assembly/Wellhead Tubing Head

The casing head, a component connecting the casing to the wellhead assembly of various types and sizes, is used to support the both the intermediate (protective) string and the production string ,and to seal up the annular space between the casings,thus providing a crossover connection for the installation of the bop ,the tubing head,the Christmas tree and other top wellhead components. It is also used to inject additional cement slurry or balance fluid,monitor the well sink,and execute other operating through both of the two bypass holes in the casing head body.

Connection Forms between Casing Head and Surface Casing
*Threaded bottom type
*Welded bottom type
*Slip bottom type

Product Name	Casing head
Working Pressure	2000 ~20000psi
Nominal Bore	7" ~20"
Working Medium	oil,natural gas,mud and gas containing H2S,CO2
Working Temperature	-46°C～121°C(Class LU)
Material Class	AA,BB,CC,DD,EE,FF,HH
Specification level	PSL1-4

Top flange	Surface casing	Intermediate casing	Production casing
11"-35MPa	13 3/8"	9 5/8"	7"
			5 1/2"
11"-70MPa	13 3/8"	9 5/8"	7"
			5 1/2"
11"-105MPa	20"13 3/8"	9 5/8"	7"
			5 1/2"
13 5/8"-35MPa	13 3/8"	9 5/8"	7"
			5 1/2"
13 5/8"-70MPa	13 3/8"	9 5/8"	7"
			9 5/8"
13 5/8"-105MPa	20"	13 3/8"	7"
			5 1/2"

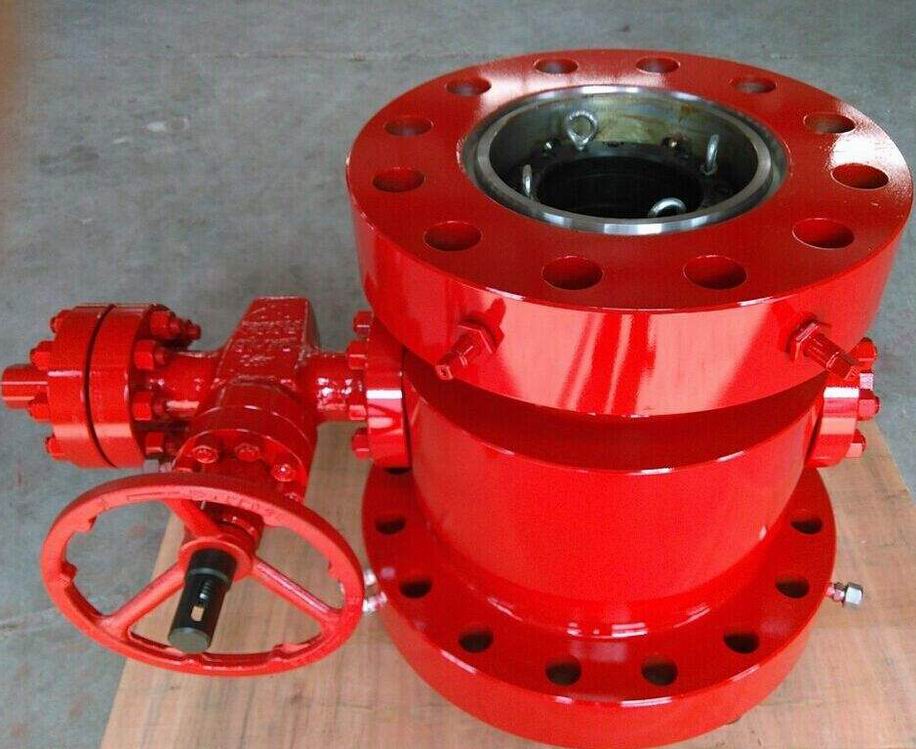

Products Show:

Packaging & Shipping:

Related Products:

Company Information:

About us

Dongying OilMan Machinery Equipment Co.,Ltd is a professional supplier of various petroleum equipment, including drilling rig accessories, well control system, drill string, handling tools, downhole tools, OCTG, drilling tools, cementing tools and spare parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.

Certificates

API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, ISO 9001, ISO14001, ISO18001 etc.
