950Kg Drilling Rig Accessories , Trailer Mounted Water Well Drilling Rig

Ask Lasest Price
Brand Name :
Model Number :	100m
Certification :	ISO
Price :	USD6000-8000/set
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	50 sets per month
Delivery Time :	15 days

Add to Cart

Product Details
Company Profile

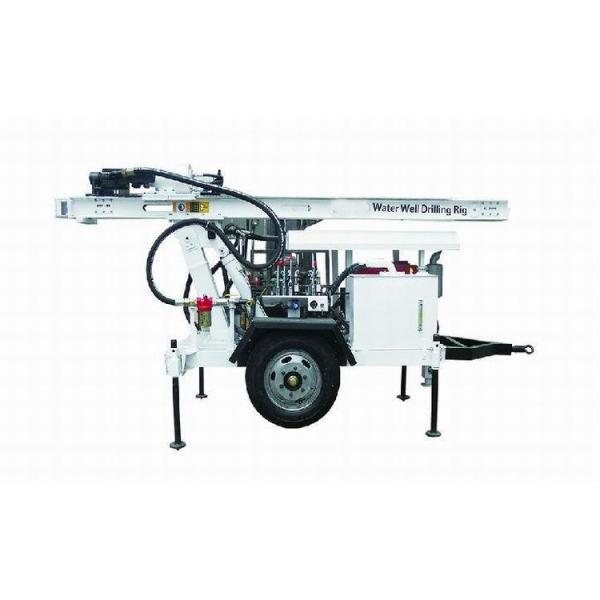

950Kg Drilling Rig Accessories , Trailer Mounted Water Well Drilling Rig

100 Meter Small Water Well Drilling Machine For Sale/Easy To Operate Trailer Type Water Well Drilling Rig

Description:

Our small portable trailer mounted water well drilling rig is a light, efficient and versatile drilling and drilling equipment. The drilling rig adopts two-wheeled trailer type, which makes the transition convenient and quick. It mainly suitable for drilling small-aperture wells, geothermal air-conditioning holes and other wells, especially for water intake projects in mountainous and rock formations. The efficiency is ten times higher than the traditional rotary drilling rig, and the economic benefits created for the users are extremely impressive. In particular, it can drilling on hard rock layer and it can work efficiently under various geological structures.

Technical Parameters:

Machine parameters
钻孔深度 Drilling depth	130m
开孔直径 Maximum opening diameter	220mm
终孔直径 Final hole diameter	75mm
钻杆直径 Drill pipe diameter	50mm
钻孔倾角 Drilling angle	90°～75°
钻机重量 Machine weight	950kg
立轴 Spindle
立轴转速 Spindle speed	142 285 570r/min
立轴行程 Spindle stroke	450mm
卷扬机 Hoist
单绳提升力Max.single line hoisting capacity	1600kg
单绳提升速度Single line lifting speed	0.41 0.82 1.64m/s
卷筒直径Reel diameter	140mm
钢丝绳直径Wire rope diameter	13mm
钢丝绳容量Wire rope length	27m
泥浆泵 Mud Pump
类型 Type	Horizontal single cylinder double-action
排量Displacement, with diesel engine	95L/min
压力 Max pressure	1.2Mpa
工作压力 Working pressure	0.7Mpa
进水管直径 Inlet pipe diameter	30mm
出水管直径 Outlet pipe diameter	20mm
三角带 Triangular belt	B1575mm

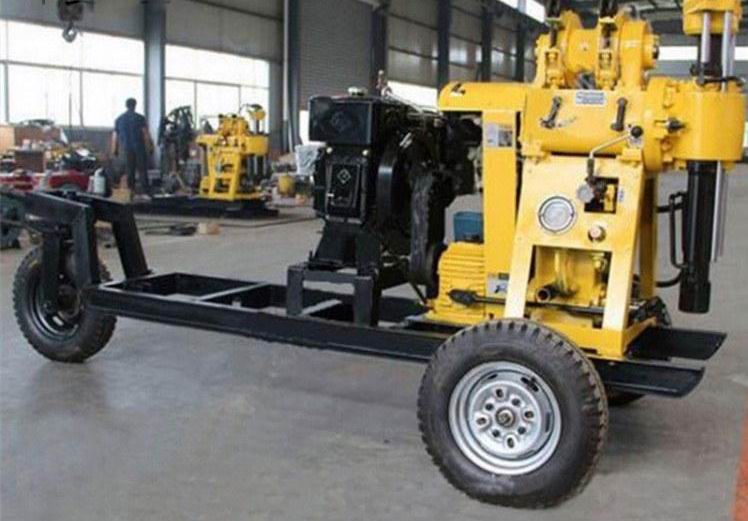

Product Pictures:

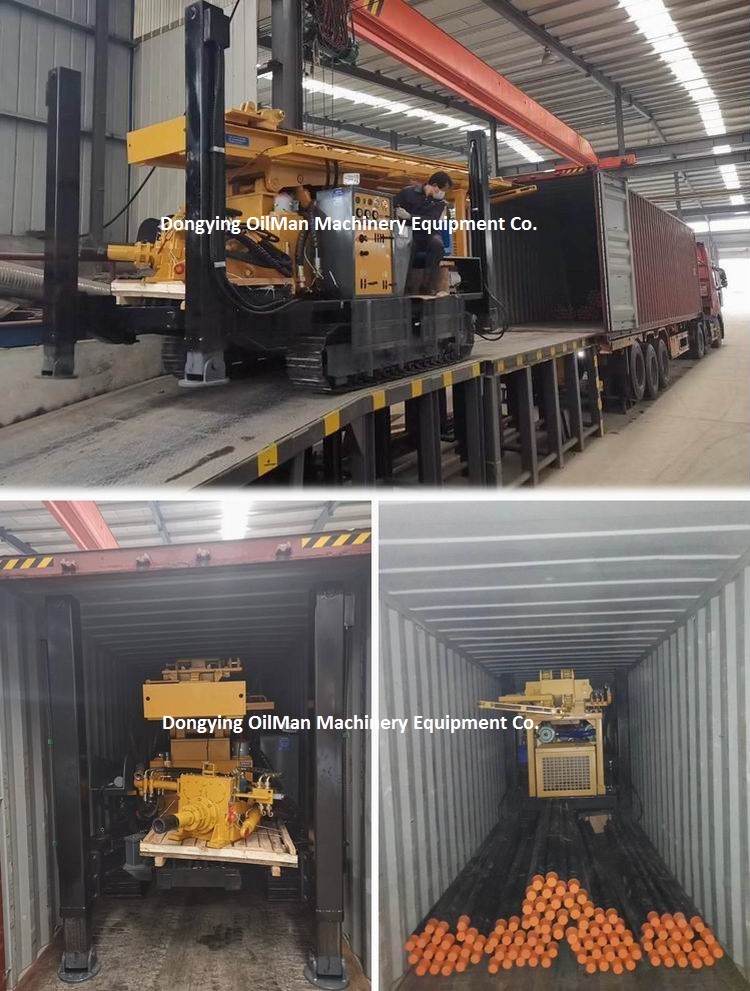

Package & Shipment:

Contact information:

Dongying OilMan Machinery Equipment Co.

Address: North Two Road, Dongying City, Shandong Province, China.

Mob/whats app/we chat:+86 13475294399

*Email: christal@oilmancn.com
