API 6A FMC Integral Pipe Fitting Wyes, Elbows, Tees, Crosses, Laterals and Fishtails

API 6A FMC Integral Pipe Fitting Wyes, Elbows, Tees, Crosses, Laterals And Fishtails

Product Overview

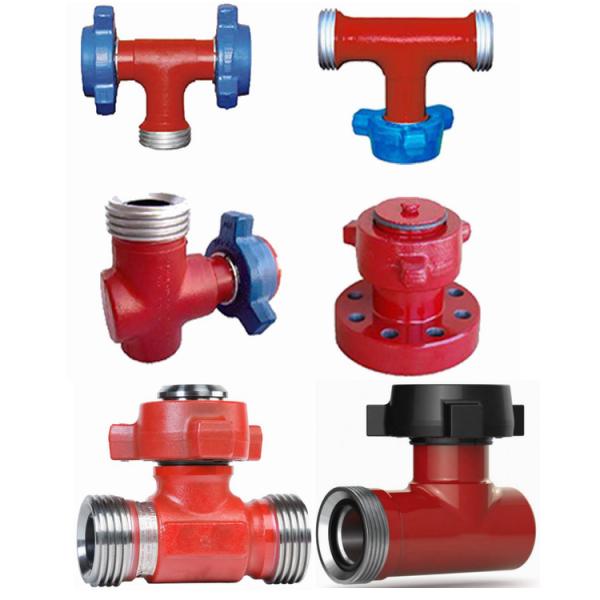

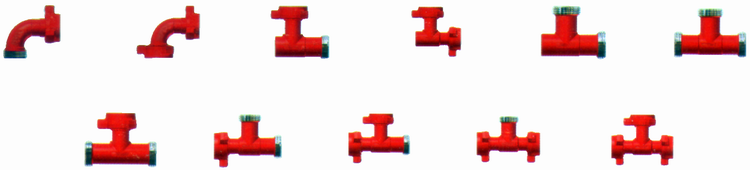

We provide series of high pressure integral fittings and welded fittings, including Wyes, Elbows, Tees, Crosses, Laterals and Fishtails, with sizes ranging from 2" to 4"and pressures from 3000psi to 20000psi(21MPa to 140MPa). The integral connections made of high strength alloy steel are all heat-treated to enhance load-bearing capacity and lengthen service life. They may have union ends for easy connection with various cementing or fracturing equipment, or have a welded end connector which is designed as per API Spec 6A.

Crossovers are used for connection between different size or thread pipes. They are forged of high strength alloy steel, and machined by NC machine tools. We can provide various types of crossovers as per customers' requirements.

Technical Parameter

Description	End connection	Rated WP	Size
			2"	3"	4"
Ells	FxF,FxM,MxM	6000psi(42MPa)	y	y	y
	welded connector	10000psi(70MPa)	y	y	y
		15000psi(105MPa)	y	y
90°Long elbows	FxF,FxM,MxM	6000psi(42MPa)	y	y	y
	welding type	10000psi(70MPa)	y	y	y
		15000psi(105MPa)	y	y
Tees	FMF,FMM,	6000psi(42MPa)	y	y	y
	FFM,FMF,MMM,	10000psi(70MPa)	y	y	y
	FFF,welded connector	15000psi(105MPa)	y	y
Crosses	FFFF,FFMF,FFMM	6000psi(42MPa)	y	y	y
	FMMMM,FMMF,MMMM	10000psi(70MPa)	y	y	y
	welded connector	15000psi(105MPa)	y	y
Wyes	MxFxF	6000psi(42MPa)	y	y	y
	welded type	10000psi(70MPa)	y	y	y
		15000psi(105MPa)	y	y
Laterals	MxFxF,FxFxF	6000psi(42MPa)	y	y	y
	welded connector	10000psi(70MPa)	y	y	y
		15000psi(105MPa)	y	y
Fishtails (Four-way laterals)	MxFxFxF	10000psi(70MPa)	y	y
Fishtails (Four-way laterals)		15000psi(105MPa)	y	y
End connection transtion (straight crossovers)	End connection transtion	different end connection		end size change:
	MxM,FxF,MxF	FIG602-FIG1002		2"x3",2"x4"
	BxF,MxP flange	FIG602-FIG1502		3x4"
	unions and welded connectors	FIG1002-FIG1502
Note:End connection sizes can be changed as per customers' requirements
B-female tread P-male connection(spherical end)F-female connection(treaded end)

If any needs, pls contact us freely:

Dongying OilMan Machinery Equipment Co.

Address: North Two Road, Dongying City, Shandong Province, China.

Mob/whats app/we chat:+86 13475294399

*Email: christal@oilmancn.com
