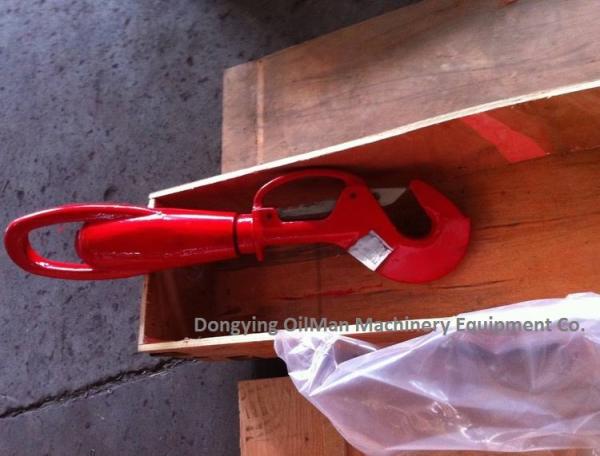

Drilling Handling Tools Sucker Rod Hook 35 Ton RH Type

20 Ton, 25 Ton, 35 Ton Sucker Rod Hook For Drilling Rig With Factory Price

Sucker Rod Hook is one of the hoisting equipment for sucker rods. It is suitable for all depth and operating condition complete with single-hand latch construction and safety ring. It is safe and dependable enough. The sucker rod hook is designed and manufactured according to API Spec 8A/8C.

Technical Parameter for Sucker Rod Hook:

Model

RH20

RH25

RH25L

RH35

Rated capacity

(short tons)

20 us tons

(180 KN)

25 us tons

(225 KN)

25 us tons

(225 KN)

35 us tons

(315 KN)

Length

488 mm

494 mm

798mm

960mm

SRE series sucker rod elevator is composed of elevator body and rod plates, which allow quick convert ion of the elevator body to various rod or pipe size. Additional saving is realized because work plates can be replaced instead of replacing the entire elevator.The basic elevator design provides excellent balance and non-tilt performance. Large access to the front and rear release levers assures easy, safe latching and unlatching.They are designed and manufactured according to API Spec 8C-specification for drilling and production Hoisting Equipment.

Technical Parameter for Sucker Rod Elevator:

Rod size(in)	Dia of Bore(mm)	Max load(tons)	Weight(kg)
¹/₂~⁵/₈	19	20	12
⁵/₈~³/₄	23
³/₄~⁷/₈	26
⁷/₈~1	30
1~1¹/₈	32
1¹/₄	35
1¹/₂	41
⁵/₈~³/₄	23	25 30	17
³/₄~⁷/₈	26
⁷/₈~1	30
