Weldless Drilling Rig Tools Elevator Links Single Arm 250/500/750 Tons

API 8C Single Arm Elevator Links 150 /250/500/750 Tons Weldless Elevator Links For Drilling Rig

DH forged elevator links are designed to hang elevators from Top Drive System or Hooks in drilling operation. Read the Manual before use elevator links.

Each elevator link of one pair is forged from one single billet of high strength alloy steel, heat treated, surface-strengthen treated and NDT for super performance and long service.

The rating loads of elevator links series are

150t(1350kN),200t (1800kN),250t (2250kN),350t (3150kN),500t (4500kN).

All the technical data and properties of elevator links completely conform to the requirements of SY/T 5035 and API Spec 8C.

Structural:

Elevator links can work in pairs. The elevator link upper eye is used for the hook link ear, and the elevator link lower eye is used for the elevator.

Specifications for DH forged elevator links:

Specifications	Rating loads		Length
	US ton	kN	cm	in
DH 150	150	1335	180	71
DH 200	200	1780	270	108
DH 250	250	2225	270	108
DH 350	350	3115	330	130
DH 500	500	4450	360	142
Note:1,1 US ton≈8.896kN 2,The elevator links of the specifications in this chart are manufactured by our company, other specifications our customer required can be defined in contract.

Perfection link

Description:

SH dependable, efficient perfection links are designed for light loads.

Perfection links are made by forging, bending and electric welding of high-quality steel bar stock, which is then heat-treated and NDT examined. Rating loads of perfection links series are 50t (450kN), 75t (675kN), 150t (1350kN).

All the technical data and properties of perfection links completely conform to the requirements of SY/T 5035 and API Spec 8C.

Structural:

Perfection links can work in pairs. Bigger end of perfection link is for the hook link ear, and small end is for the elevator.

Specifications for SH Perfection Links:

Specifications	SH 50	SH 75	SH 150
Rating loads	50t(450kN)	75t(665kN)	150t(1335kN)
Length	1100mm	1500mm	1800mm
Note:1,1 US ton≈8.896kN 2, The elevator links of the specifications in this chart are manufactured by our company, other specifications our customer required can be defined in contract.

Products Show:

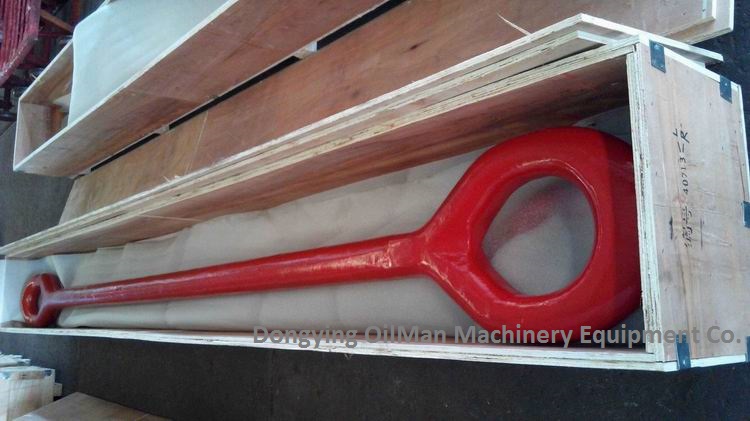

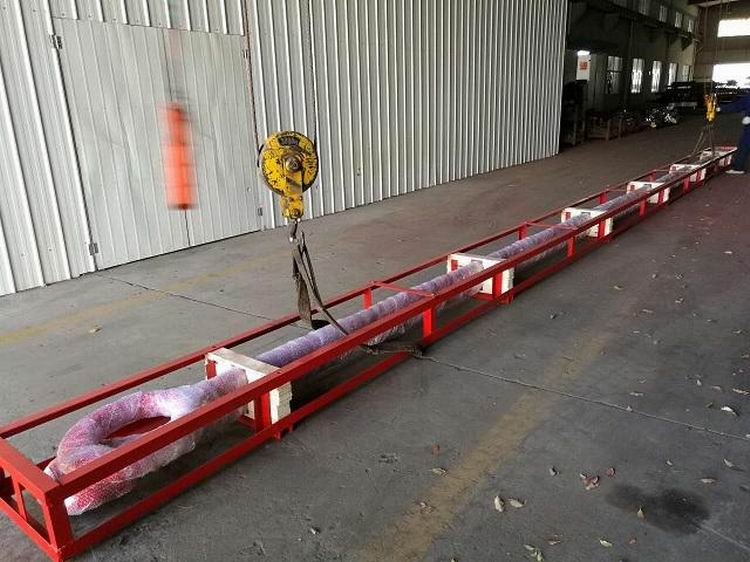

Packaging & Shipping:

Related Products:

If any needs, pls contact us freely:

Dongying Machinery Equipment Co.

Address: North Two Road, Dongying City, Shandong Province, China.

Mob/whats app/we chat:+86 13475294399

*Email: christal@oilmancn.com
