API 7K WT Type 4-1/2" To 9-1/2" Drill Collar Slips Rotary Slips For Oilfield

API 7K WT Type 4-1/2" To 9-1/2" Drill Collar Slips Rotary Slips For Oilfield

Description

There are three kinds of model of DCS Drill Collar Slips:S,R and L. They can accommodate drill collar from 3 inch(76.2mm) to 14 inch(355.6mm) O.D..The handling sizes can be adjusted by changing the quality of inserts or slip body.They are designed and manufactured according to API Spec 7K Specification for drilling and well servicing equipment.

Slip type		DCS-S		DCS-R		DCS-L
Drill Collar OD.	in	3-4	4-4 7/8	4 1/2-6	5 1/2-7	6 3/4- 8 1/4	8-9 1/2	8 1/2- 10	9 1/4- 111/4	11 12 3/4	12-14
Drill Collar OD.	mm	76.2- 101.6	101.6 123.8	114.3- 152.4	139.7- 177.8	171.5- 209.6	203.2- 241.3	215.9- 254	235- 286	279.4- 234	304.8- 335.6
Weight	kg	51	47	54	51	70	78	84	90	116	107
Weight	lb	112	103	120	112	154	173	185	198	256	237
Insert Bowl No.		API or NO.3							NO.2 NO.1

Drill Collar Slips Type WT can accommodate drill collars from 4.1/2in(114.3mm) to 11.3/4in(285.8mm) O.D.. They are designed and manufactured according to API Spec 7K.

Model	Drill Collar O.D.		Weight		Use in Insert Bowl No.	Max. Load
Model	in	mm	kg	lb	Use in Insert Bowl No.	Max. Load
WT 4 1/2~6	4 1/2~6	114.3~152.4	49	108	API or No.3	40 short tons
WT 5 1/2~7	5 1/2~7	139.7~177.8	46	101
WT 6 3/4~8 1/4	6 3/4~8 1/4	171.4~209.6	42	92
WT 8~9 1/2	8~9 1/2	203.2~241.3	39	86

Drill Collar Slips Type A are multi-segment slips. They can accommodate the changes of outer diameter after the abrasion of drill collar. They are with light weight, large handling scale and reliable quality. This kind of slips are designed and manufactured according to API Spec 7K.

Model		Model A
Drill Collar OD.	in	3- 4 1/2	31/4- 4 3/4	41/4- 5 3/4	51/2- 7	6 3/4- 8 1/4	8 1/4- 10	10- 11 3/4
	mm	76.2- 114.3	82.55- 120.65	107.95- 146.05	139.7- 177.8	171.5- 209.55	209.55- 254	254- 298.45
Use in insert bowl No.		API or No.3					No.2

Products Show:

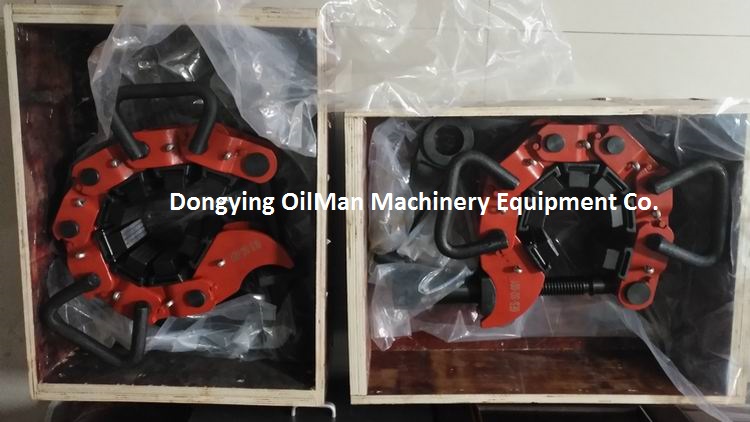

Packaging & Shipping:

If any needs, pls contact us freely:

Dongying OilMan Machinery Equipment Co.

Address: North Two Road, Dongying City, Shandong Province, China.

Mob/whats app/we chat:+86 13475294399

*Email: christal@oilmancn.com
