API Standard Drilling Handling Tools DDZ Elevator Side Door

Ask Lasest Price
Brand Name :
Model Number :	DD & DDZ Type
Certification :	API 8A/8C
Price :	USD150-800/piece
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	300 pieces per month
Delivery Time :	15-30 work days

Add to Cart

Product Details
Company Profile

API Standard Drilling Handling Tools DDZ Elevator Side Door

Handing Tools DDZ Series Elevator As API Standard/Oil Well Drilling Side Door Elevator/Drill Pipe Elevator In Oilfield

Model DD center latch elevators with square shoulder are suitable for handling drill collars, casings and tubing. The load ranges from 150 tons a to 350 tons and the size ranges from 2-3/8” to 5- 1/2”. The products shall be designed and manufactured according to API Spec 8A/8C specification for drilling and production hoisting equipment.

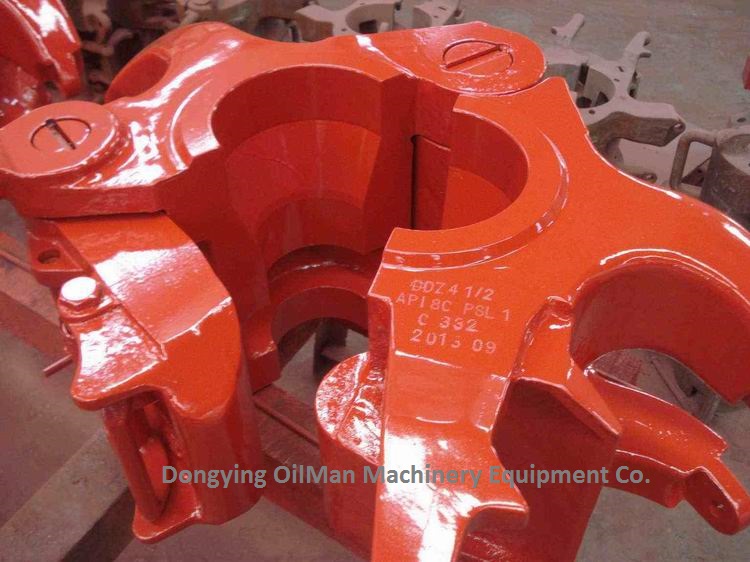

Model DDZ series elevators are center latch elevators with 18 degree taper shoulder, applied in handling the drill pipe and drilling tools, etc. The load ranges from 100 tons to 750 tons and the size ranges from 2-3/8” to 6-5/8”. The products shall be designed and manufactured according to the requirements in API Spec 8A/8C. Specification for drilling and production hoisting equipment.

Features:

1.Size: 2-3/8" to 6-5/8"

2.Rated Capacity: 150t to 750t

3.Usage: Drill Pipe, Casing, Tubing

4.Standard: API 8A/8C

5.Type: DD, DDZ, CD, CDZ, SJ, TA, SX, SLX, Y series, etc.

Technical Parameter for DD type Elevator:

Model	Size (in)			Rated Cap. (ton)
Model	Drill Pipe	Casing	Tubing	Rated Cap. (ton)
DD Type
DD-150	2-3/8 ~ 5-1/2	4-1/2 ~ 5-1/2	2-3/8 ~ 4-1/2	150
DD-200	2-3/8 ~ 5-1/2	4-1/2 ~ 5-1/2	2-3/8 ~ 4-1/2	200
DD-350	2-3/8 ~ 5-1/2	4-1/2 ~ 5-1/2	2-3/8 ~ 4-1/2	350

Technical Parameter for DDZ type Elevator:

Model	Size (in)	Rated Cap.
DDZ Type
DDZ-100	2-3/8 ~ 5	100
DDZ-150	2-3/8 ~ 5-1/2	150
DDZ-250	2-3/8 ~ 5-1/2	250
DDZ-350	3-1/2 ~ 5-7/8	350
DDZ-500	3-1/2 ~ 6-5/8	500
DDZ-750	4 ~ 6-5/8	750

If any needs, pls contact us freely:

Dongying OilMan Machinery Equipment Co.

Address: North Two Road, Dongying City, Shandong Province, China.

Mob/whats app/we chat:+86 13475294399

*Email: christal@oilmancn.com
