Hydraulic Two Stage Cementing Collar Adjusted Opening Pressure

Ask Lasest Price
Brand Name :
Model Number :	5 1/2" - 13 3/8"
Certification :	API
Price :	USD2000-5000/pc
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	200 pieces per month
Delivery Time :	20-30 work days

Add to Cart

Product Details
Company Profile

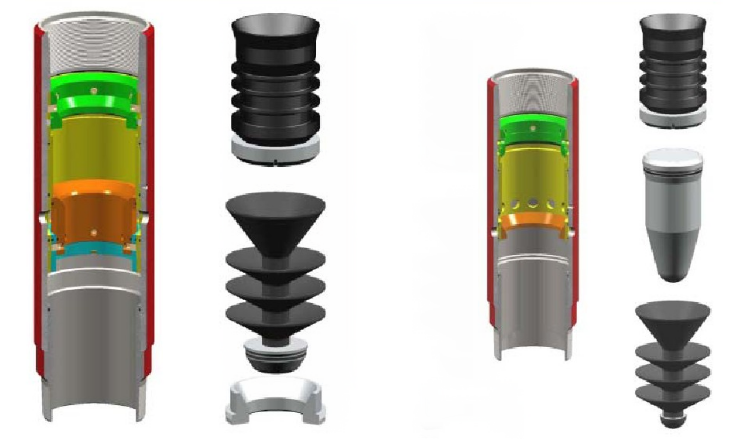

Hydraulic Two Stage Cementing Collar Adjusted Opening Pressure

9 5/8" Hydraulic Cementing Stage Collars Two Stage Cementing Collars For Oil Drilling Cementing Tools

Description:

The multi-stage cementing collar provides an effective, economical way to cement one or more specific casing intervals or to cement upper zone after a lower zone has been cemented. The collar should be used with centralizers above and below and a cementing basket positioned below the ports. The operation of the collar is simple and reliable. It features a double locking mechanism consisting of a snap ring lock and ball lock system to assure that the ports are permanently locked closed after cementing is completed. Internal parts are designed to lock to prevent rotation during drill out and are constructed of easily drillable materials.

Features:
1.Opening pressure can be adjusted and it is not subjective to hole angle.
2.The pressure-relief design prevents fluid trapping and compression during the closing phase of the tool's operation.
3.The I.D of upper/lower sub is the same as that of casing, but smaller than that of closing sleeve, which can minimize chances of damages to the closing sleeve.

Technical Parameters:

Specifications,(in)	5 1/2"	7"	9 5/8"	13 3/8"
Max OD., mm	Φ170	Φ208	Φ283	Φ381
Drill- out I.D., mm	Φ122	Φ155	Φ220	Φ315
Overall Length, mm	1082	1182	1222	1280
Rated Load, t	140	170	210	300
Sealing Capacity, MPa	25	25	25	25
Opening Pressure, MPa	13	13	13	14
Closing Pressure, MPa	5	5	5	5
Lower Sliding Sleeve I.D., mm	Φ85	Φ115	Φ176	Φ203
Upper Sliding Sleeve I.D., mm	Φ95	Φ125	Φ197	Φ285

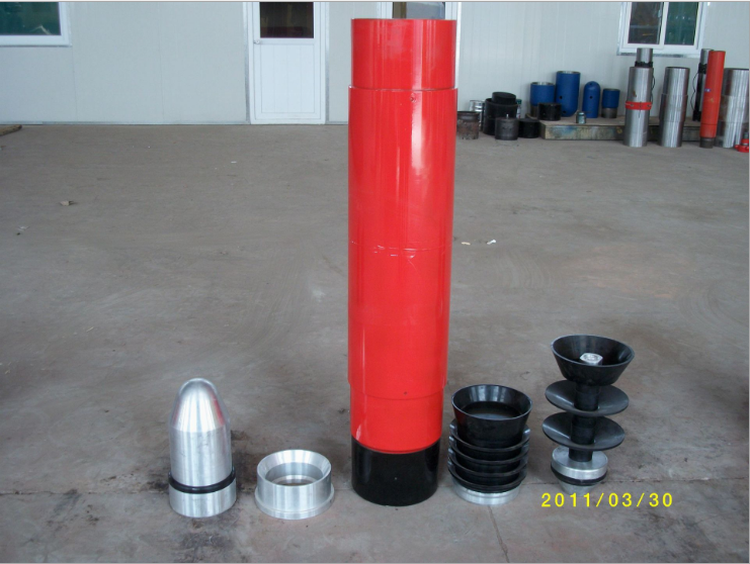

Products Show:

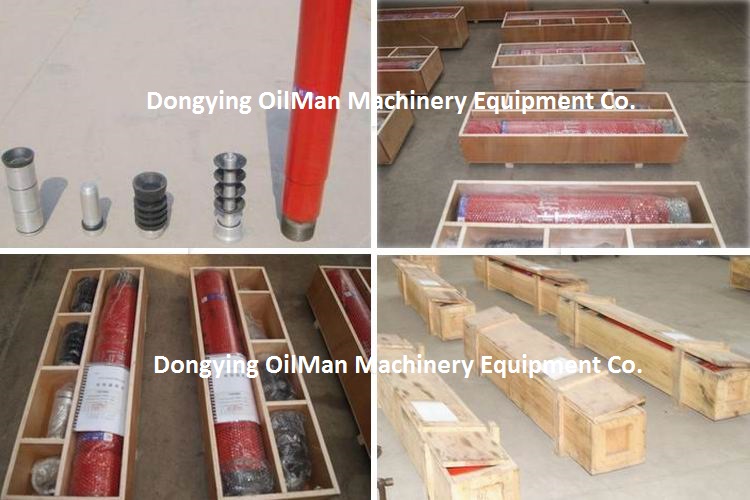

Packaging & Shipping:

If any needs, pls contact us freely:

Dongying OilMan Machinery Equipment Co.

Address: North Two Road, Dongying City, Shandong Province, China.

Mob/whats app/we chat:+86 13475294399

*Email: christal@oilmancn.com
