PZ10 Forged Alloy Steel Mud Pump Valve Seat Assembly Oil Drilling

Ask Lasest Price
Brand Name :
Model Number :	F1600,F1300,F1000,F800,F500,GD PZ9/11, 12P160...
Certification :	API 7K
Price :	USD50-600/pc
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	1000 pieces per month
Delivery Time :	25-30 work days

Add to Cart

Product Details
Company Profile

PZ10 Forged Alloy Steel Mud Pump Valve Seat Assembly Oil Drilling

PZ7 PZ8 PZ9 PZ10 Mud Pump Parts Mud Pump Valve Assembly And Valve Seat

specializes in supplying quality mud pumps and mud pump parts.

We export-orientated mud pump parts, including liners, pistons, piston inserts, valve inserts, oil seals, rod packing, fluid ends etc.. All of them meet or exceed DIN and API standards and have been exported to U.K., Germany, USA, Canada, Pakistan, Middle East, and so on.

We also supply mud pump parts according to drawings or samples supplied by our customers.

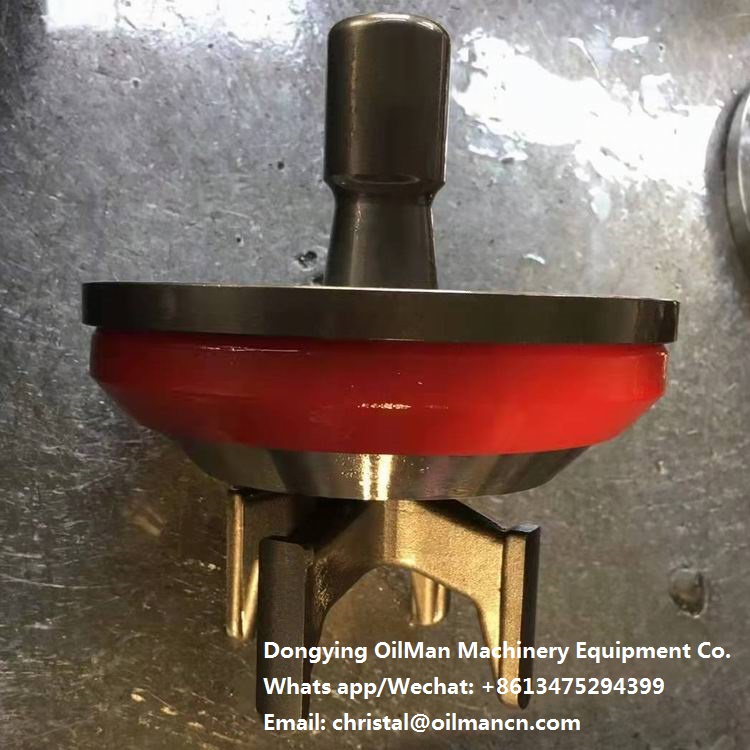

Mud pump valve assembly and seat are made of forged alloy steel with deep carburized wear surface. We offer a full range of valves and seats which include full open valve and seat, 3 web / 4 web design valve and seat.

Full Open Valve and Seat
The valve comes with full open seat features four guide wings. They are either inertia welded to the valve body or uniformly forged with valve body. The urethane insert can be easily snapped on.

3 Web / 4 Web design Valve and Seat
The 3 web / 4 web seat comes with stem guided valve. The urethane insert is tightened by steel plate and nut. It can be easily replaced with minimum down time. They offer long lasting service life under harsh service conditions.

Mud Pump Valve Assembly Model
BOMCO	F-500	F-800	F-1000	F-1300	F-1600	F-1600HL	F-1600L	F-2200HL
Hong Hua	HHF-500	HHF-800	HHF-1300	HHF-1600	3NB-1600F	5NB-1600	5NB-2400
EMSCO	F-500	F-800	F-1000	F-1300	F-1600	FD-1000	FC-2200	FB-1300
Gardner Denver	PAH	P7	P8/9	P10/11	PXL	PX-11	PZL	PY-FXD
National	7-P-50	8-P-80	9-P-100	10-P-130	12-P-160	14-P-200	14-P-220	N-1000/1300
Oilwell	A-850-PT	A-1100-PT	A-1400-PT	A-1700-PT
TSC	WF-500	WF-800	WF-1000	WF-1300	WF-1600	WF-2000	WF-2200
IDECO	T-500	T-800	T-1000	T-1300	T-1600

Products Overviews:

PZ7 PZ8 PZ9 PZ10 Mud Pump Parts Mud Pump Valve Assembly and Valve Seat
