Oil Drilling Rig Wellhead Assembly Fig 100 Fig 200 Hammer Union

FMC Weco Fig 100 Fig 200 Hammer Union For Oil Drilling Rig

Product Description

High pressure hammer union from Dongying Machinery Equipment Co.,ltd, importing international advanced technology, is forged with high strength alloy steel, strict head treatment process can ensure that the nipple have uniform metallurgical structure and pressing ability and the material meets ASTM and AISI standard and technology indexes conform to API Spec. 6A, the product adopts some end connections of pipeline thread, tubing thread, butt-weld and compress-seal.

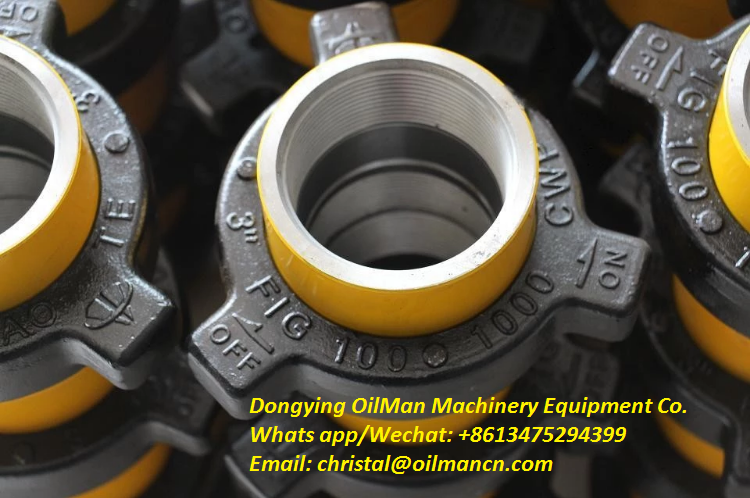

FIG 100

Size		Weight	A	B	C+	TPI*	Material
(Inches)	(mm)	(LBS)	A	B	C+	TPI*	Nuts	Sub
2	50	6.25	3.94	2.84	6.25	3 MOD	Steel Forging A105
3	80	13.65	4.9	4.1	7.8	3 MOD
4	100	22	5.7	5.2	8.9	3 MOD
6	150	45.85	6.8	7.39	13.81	3 STD	Steel Casting	Steel Forging A105
8	200	66.65	7.23	9.7	16.125	3 STD	Steel Casting	Steel Forging A105
*TPI-Threads per inch.

FIG 200, 206
* socket weld and butt weld are also available

Size		Weight	A	B	C+	D**	TPI*	Material
(Inches)	(mm)	(LBS)	A	B	C+	D**	TPI*	Nuts	Sub
1	25	1.75	2.8	1.6	3.8	**	6 STD	Steel Forging A105
2	50	4.9	3.5	2.9	5.8	**	4 STD
3	80	13.25	4.5	4.1	7.8	**	4 STD
4	100	18.35	5.0	5.1	8.9	**	3 STD
6	150	46	6.61	7.41	12.8	**	3 STD	Steel Casting	Steel Forging A105
8	200	68	7.24	9.65	13.75	**	3 STD	Steel Casting	Steel Forging A105
TPI-Threads per inch. *Weld Ends-Consult Factory.

	Working Pressure	1"	2"	3"	4"	6"	8"
FIG 100	1000LB		√	√	√	√	√
FIG 200	2000LB	√	√	√	√	√	√
FIG 206	2000LB	√	√	√	√	√	√
FIG 207	2000LB	√	√	√	√
FIG 300	3000LB	√	√	√	√
FIG 400	4000LB	√	√	√	√
FIG 602	6000LB		√	√	√
FIG 607	6000LB		√
FIG 1502	15000LB	√	√	√
