Mud Tank Seal O Grip Union Max Sealing Pressure 0.4MPa For Drilling Fluid Pipelines

Ask Lasest Price
Brand Name :
Model Number :	4'' 6", 8", 10", 14", 16", etc
Certification :	ISO
Price :	USD10-100/piece
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	3000 pieces per month
Delivery Time :	7-20 work days

Add to Cart

Product Details
Company Profile

Mud Tank Seal O Grip Union Max Sealing Pressure 0.4MPa For Drilling Fluid Pipelines

Air O Grip Union, Pneumatic Union, Air Seal Union, Mud Tank Union

Product Description

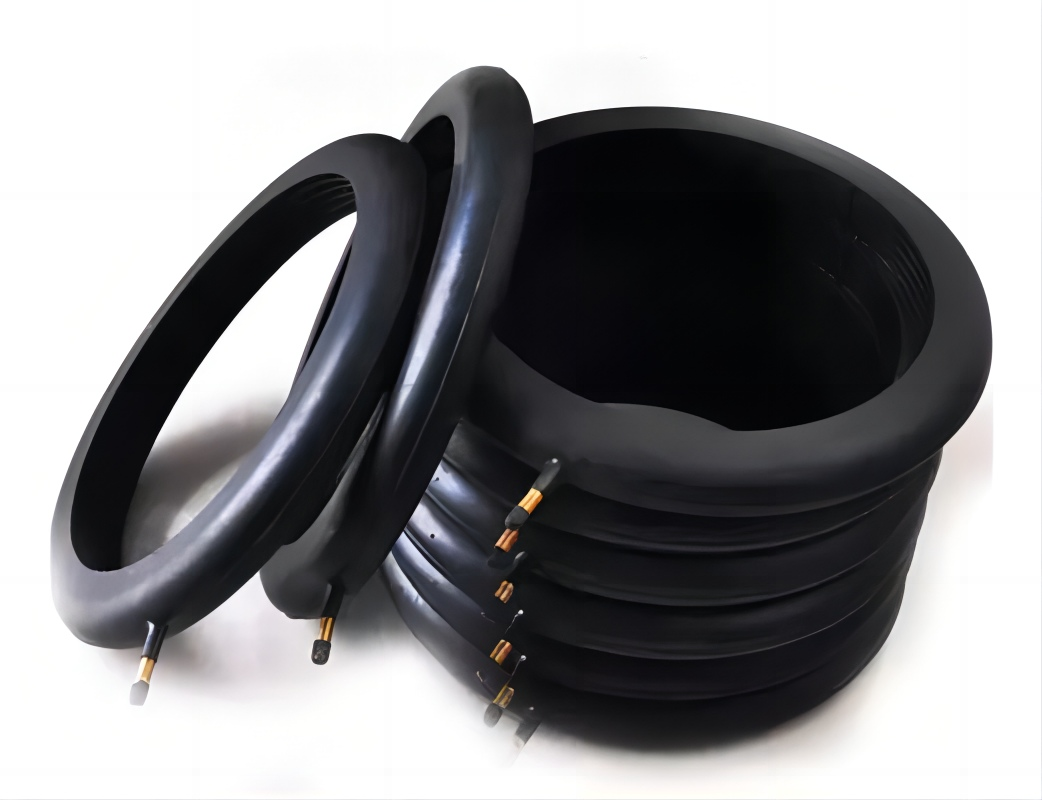

Air grip union have steel shell and pneumatic tires two parts. Pneumatic tire is made from the mixture of natural rubber and nitrile and the most steel shells are made from high quality carbon steel. It's widely apploed in drilling fluid pipe lines with low pressure, large pipe size, big pipe misalignment, frequent installation and uninstall.

Recommended Service:

Mud suction and return lines and low-pressure fluid lines.

Features:

Shot of rig air inflates tube to seal aroud pipe

Fast, easy make-up without close alignment

Allows pipe expansion or misalignment without breaking the seal

No nuts, bolts, or wrenches required

Mud Tank Seal O Grip Union Max Sealing Pressure 0.4MPa For Drilling Fluid Pipelines

Normal Pipe Size (mm)	4''	6''	8''	12''	14''	16''
Tube I.D.(mm)	114	171	222	329	384	413
Body I.D.(mm)	117	176	227	333	388	416
Butt Weld I.D.(mm) C	129	203	257	340	409	441
Butt Weld I.D.(mm) D	141	219	273	356	425	547
Body O.D.(mm) E	168	260	311	419	476	503
Height (mm) F	80	102	102	108	108	108
wt(kgs)-air bag	0.3	0.65	0.8	1.2	1.5	1.7
wt(kgs)-assembly	5.5	8.2	9.2	13.5	15	20

Mud Tank Seal O Grip Union Max Sealing Pressure 0.4MPa For Drilling Fluid Pipelines

If any needs, pls contact us freely:

Dongying OilMan Machinery Equipment Co.

Address: North Two Road, Dongying City, Shandong Province, China.

Mob/whats app/we chat:+86 13475294399

*Email: christal@oilmancn.com Website: www.oilmanchina.com
