Oil And Gas Drilling FMC 2 " 3" 4" Weco Integral Pup Joints With Fig 1502 Union Connection

Ask Lasest Price
Brand Name :
Model Number :	1502 Integral Pup Joints
Certification :	API 6A
Price :	USD50-500/pc
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	2000 pieces per month
Delivery Time :	25-30 work days

Add to Cart

Product Details
Company Profile

Oil And Gas Drilling FMC 2 " 3" 4" Weco Integral Pup Joints With Fig 1502 Union Connection

Oil And Gas Drilling FMC 2 " 3" 4" Weco Integral Pup Joints With Fig 1502 Union Connection

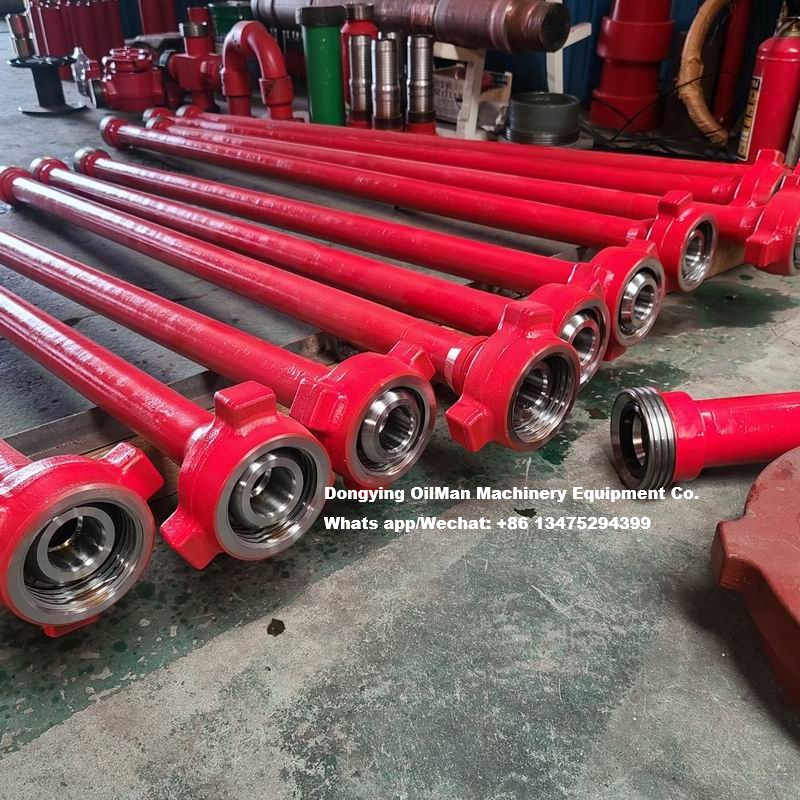

Swivel loop Pup joint is cementing and fracturing equipment delivery high pressure fluid control products. Widely used in the acidic operating environment (excluding containing CO2, H2S sour gas operating environment) in the high-pressure discharge line, input line, a temporary flow line, well testing, and other high-voltage transmission lines on pipelines.

Pup joint made of high strength steel, with a special toughening process. It uses Acme threaded connection, making it with the demolition convenient, fast, reliable connection, and reliable. Multiple seal design and high precision, to ensure the sealing performance of Pup joint.

1. The integral pup joint is union instead of screw connection on the top, which is more secure and reliable.

2. Easy and quick assembling and disassembling.

3. High strength and low weight.

4. Each technical parameters and performances of pup joints conform to standards of API Spec 6A and can be exchanged with like products internationally.

Product Name	Integral pup joint 1502/union pup joint/1502 pipe fitting
Material	Alloy steel, ANSI 4135,4130, 35CrMo
Connection method	1502 hammer union
Size	2" ~ 4"
Pressure	14 ~105MPa
Length	1~5m
Standard	API

Description	End connection	Rated WP	Size(inch)
			1"	1-1/2“	2"	3"	4"
Pressure Seal Type	FIG402 union	4000psi(28MPa)	y		y	y	y
	FIG602 union	6000psi(42MPa)	y		y	y	y
	FIG1002 union	10000psi(70MPa)	y	y	y	y	y
	FIG1502 union	15000psi(105MPa)	y	y	y	y
Non-pressure Seal Type	FIG206 union	2000osi(14MPa)			y	y	y
	FIG602 union	6000psi(42MPa)			y	y	y
	FIG1002 union	10000psi(70MPa)		y	y	y	y
	FIG1502 union	15000psi(105MPa)		y	y	y
Conventional Integral Type	FIG602 union	6000psi(42MPa)		y	y	y
	FIG1002 union	10000psi(70MPa)		y	y	y
	FIG1502union	15000psi(105MPa)		y	y	y
Integral Type for H2S environment	FIG602 union	5000psi(35MPa)		y	y	y
	FIG1002 union	7500psi(53MPa)		y	y	y
	FIG1502 union	10000psi(70MPa)		y	y	y
Welded Union Type	FIG402 union	4000psi(28MPa)			y	y	y
	Tr union in metric	5000psi(35MPa)			y	y	y
	FIG602 union	6000psi(42MPa)			y	y	y
	FIG1002 union	10000psi(70MPa)		y	y	y	y
	FIG1502 union	15000psi(105MPa)		y	y	y
Welded Flange Type	2-1/16"flange	3000,5000,10000,15000psi(21,35,70,105MPa)			y
	2-9/16"flange	3000,5000,10000,15000psi(21,35,70,105MPa)			y	y
	3-1/8"flange	3000,5000psi (21,35MPa)				y
	4-1/16"flange	3000,5000,10000,15000psi(21,35,70,105MPa)					y
	3-1/16"flange	10000,15000psi(70,105MPa)				y

Oil And Gas Drilling FMC 2 " 3" 4" Weco Integral Pup Joints With Fig 1502 Union Connection

Any enquiry please contact us by email: christal@oilmancn.com.

Visit our website: www.oilmanchina.com for more products information.

WhatsApp/WeChat:+86 13475294399
