API Oilfield Full Opening Drill Pipe Safety Valve FOSV Kelly Valve Cock

Ask Lasest Price
Brand Name :
Model Number :	Full Opening Safety Valve FOSV
Certification :	API 7-1
Price :	USD500-10000/pc
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	300 pieces per month
Delivery Time :	20 days

Add to Cart

Product Details
Company Profile

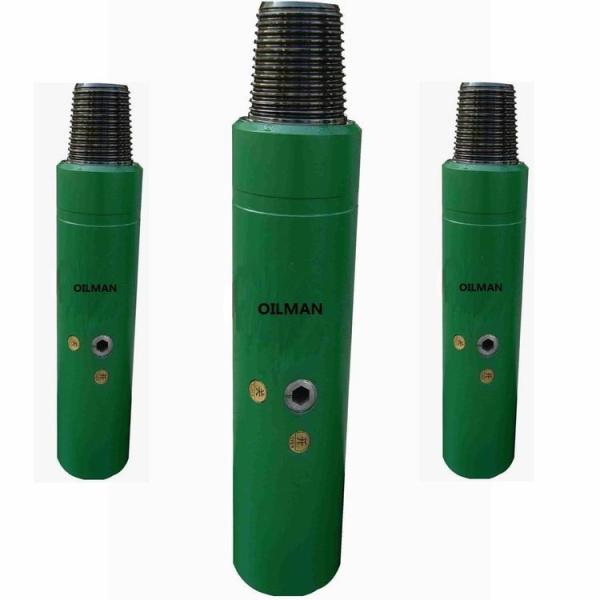

API Oilfield Full Opening Drill Pipe Safety Valve FOSV Kelly Valve Cock

API Oilfield Full Opening Drill Pipe Safety Valve FOSV, Kelly Valve, Kelly Cock

Full Opening Safety Valve (short for FOSV) is a ball type safety
valve used to stop flow through the drill string when the drill
string is being withdrawn from the well. Our FOSV is dual body
full-opening safety valve, so it does not interfere with the
running of tools such as core barrels or survey instruments. It is
designed to be stabbed into the top joint of drill pipe or tubing
string at the rig floor and closed quickly in case a well kicks.
The ball-type design permits the valve to be compact, easy to
handle, and yet have great strength. Standard test pressure is
10,000PSI, but higher pressure ratings are available. FOSV and
operating wrench be should be maintained on the rig floor at all
times.
When ordering please specify:
Connection.
O.D. and I.D.

Model	O.D.	I.D.	Connection	Length
XS105-T44	φ105	φ44	2A10X2A11	732
XS110-T51	φ110	φ51	210X211	726
XS124-T62	φ124	φ62	2 7/8 EUE	578
XS127-T62	φ127	φ62	2 7/8 EUE	578
XS133-T57	φ133	φ57	XT39	773
XS133-T57	φ133	φ57	4 1/2VAM	1173
XS134-T62	φ134	φ62	310X311	800
XS134-T62	φ134	φ60	4 1/2NU	560
XS146-T50.8	φ146	φ50.8	NC31	832
XS152-T76	φ152	φ76	3 1/2NU	640
XS152-T76	φ152	φ76	3 1/2 EUE	617
XS178-T76	φ178	φ76	3 1/2EUE	675
XS178-T76.2	φ178	φ76.2	4A10X4A11	885
XS190-T82.6	φ190	φ82.6	410X411	895

Full Opening Safety Valve (FOSV)
