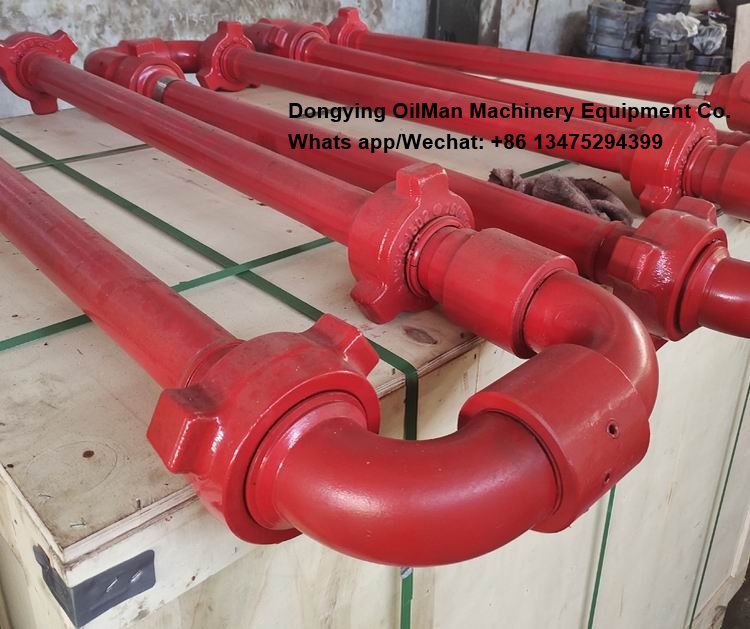

    Oilfield High Pressure Cementing Acid Fracturing Hose Loop With Integral Fig1502

    Oilfield High Pressure Cementing Acid Fracturing Hose Loop With Integral Fig1502


    Hose Loops are mainly used for transporting fluid in high pressure discharge line, well testing line and cementing slurry line.


    Our Hose Loops include long radius type and flexible type.


    Long radius type combines long radius swivel joint and integral pup joint, featuring high erosion resistance, less vibration, impact resistance and large flow.


    Flexible type has single union connection, featuring excellent seal and rotary performance.


    Our Hose Loops are available in both standard service and H2S service, applicable to cementing, fracturing, acidizing and testing lines. Customized design is also available to meet various demand.


    Features:

    • Special repair kit is available for quick and inline maintenance.

    • Easy to fold, store and transport.

    • High flexibility, less vibration, impact resistance and large flow

    • Integral hammer union connection is easy for assembly and disassembly.

    Specification:
    • Working Pressure Scope: 6000-15000psi
    • Nominal Size: 1"-4"
    • Spec. size: 2”x 10’, 2” x 12’, 3” x 12'
    • Working Temperature: -29-121 C°(PU)
    • Medium: Standard Trim or H2S
    • Standard: API Spec 16C or NACE MR 0175

    specification

    Name

    Cold working press

    Terminal connection type

    Buckle model

    Tr100×12

    Thread sealing hose loops
    Integral hose loops
    H2S proof hose loops

    42MPa

    Tr100×12

    Metric system

    Tr99×12.7

    42MPa

    Tr99×12.7

    British system

    2"×42

    42MPa

    3.8125-3Stub Acme-2G

    fig602

    2"×70

    70MPa

    3.8125-3Stub Acme-2G

    fig1002

    2"×105

    105MPa

    4.125-3-Acme-2G

    fig1502

    3"×42

    42MPa

    5.375-3Stub Acme-2G

    fig602

    3"×70

    70MPa

    5.375-4-Acme-2G

    fig1002

    3"×105

    105MPa

    5.375-3.5-Acme-2G

    fig1502

    4"×42

    42MPa

    6.25-3Stub Acme-2G

    fig602

    4"×70

    70MPa

    6.25-4-Acme-2G

    fig1002

    Remark:How to place an order:Integral hose loop-3"×105 -8’ (according to expanded size)
