    Construction Machine Parts Rotary Drill Bit Bullet Teeth Cutting Pick

    Ask Lasest Price
    Brand Name :
    Model Number : B47K19H, B47K22H,C31HD
    Certification : ISO
    Price : USD5-20/pc
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 3000 pieces per month
    Delivery Time : 15-25 work days
    • Product Details
    • Company Profile

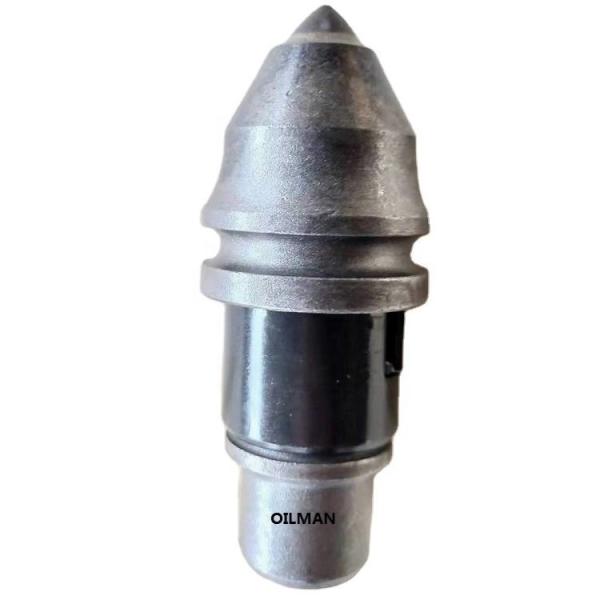

    Construction Machine Parts Rotary Drill Bit Bullet Teeth Cutting Pick

    Construction Machine Parts Rotary Drill Bit Bullet Teeth Cutting Pick


    Bullet teeth (Foundation Drilling cutting tools, Round Shank cutter bit, Round shank chisel) are used as ripping teeth on augers,drilling buckets and core barrels for foundation drilling, solid wall, water well drilling, trenching, mining and tunneling.


    Carbide steel body, made by material ASTM4142 or 42CrMo,heat treatment with 40-44HRC hardness, has high toughness and wearable character.Tip with above 50 HRC hardness is made from low press sintered, and suitable grade tungsten carbide according to the target projects,to make sure high performance during works.


    Code
    Code Number
    Kennametal code
    DS01 DS02 DS03 DS04 DS05
    Betek code
    B47K22H B47K19H B47K17.5H BKH28 BKH40 BKH41 BKH47 BKH81
    Bau-er code
    C403 C402
    Item No.
    Material
    Weight
    Cutting Rock Type Examples
    Intensity range
    2K
    Tungsten Cobalt Carbide
    1.15kg
    strongly weathered limestone, strongly weathered dolomite,
    dense sandstone and strongly weathered silicified limestone, etc.
    600Kpa ~ 20Mpa
    KRA
    Tungsten Cobalt Carbide
    1.2kg
    mudstone, sandstone, etc.
    <30MPa
    8TA
    Tungsten Cobalt Carbide
    1.22kg
    high-density sandstone, mudstone, etc.
    800Kpa~5Mpa
    12T
    Tungsten Cobalt Carbide
    1.2kg
    high-density sandstone, mid-weathered granite, etc.
    2000Kpa~10Mpa
    Item No.
    Material
    Weight
    Cutting Rock Type Examples
    Intensity range
    3055-6L
    Tungsten Cobalt Carbide
    1.2kg
    dense sandstone, pebbles, red sandstone and large particle boulders, etc.
    800Kpa ~1000Kpa
    9N
    Tungsten Cobalt Carbide
    1.3kg
    high-density sandstone, samll pepple, mid-weathered granite, mid-weathered limestone, etc.
    2000Kpa~40Mpa
    TR2
    Tungsten Cobalt Carbide
    1.4kg
    dense sandstone, moderately weathered granite, moderately weathered silicified limestone and weakly weathered quartzite
    2000Kpa~20Mpa
    ST2
    Tungsten Cobalt Carbide
    1.4kg
    weakly weathered granite, marble, weakly weathered silicified limestone, silicified sandstone, basalt, etc.
    20MPa~50Mpa
